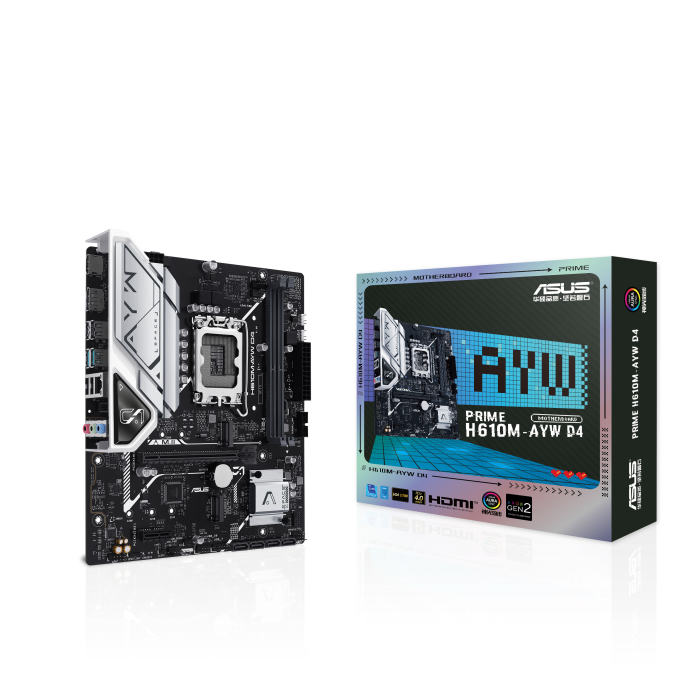

H610M-AYW D4

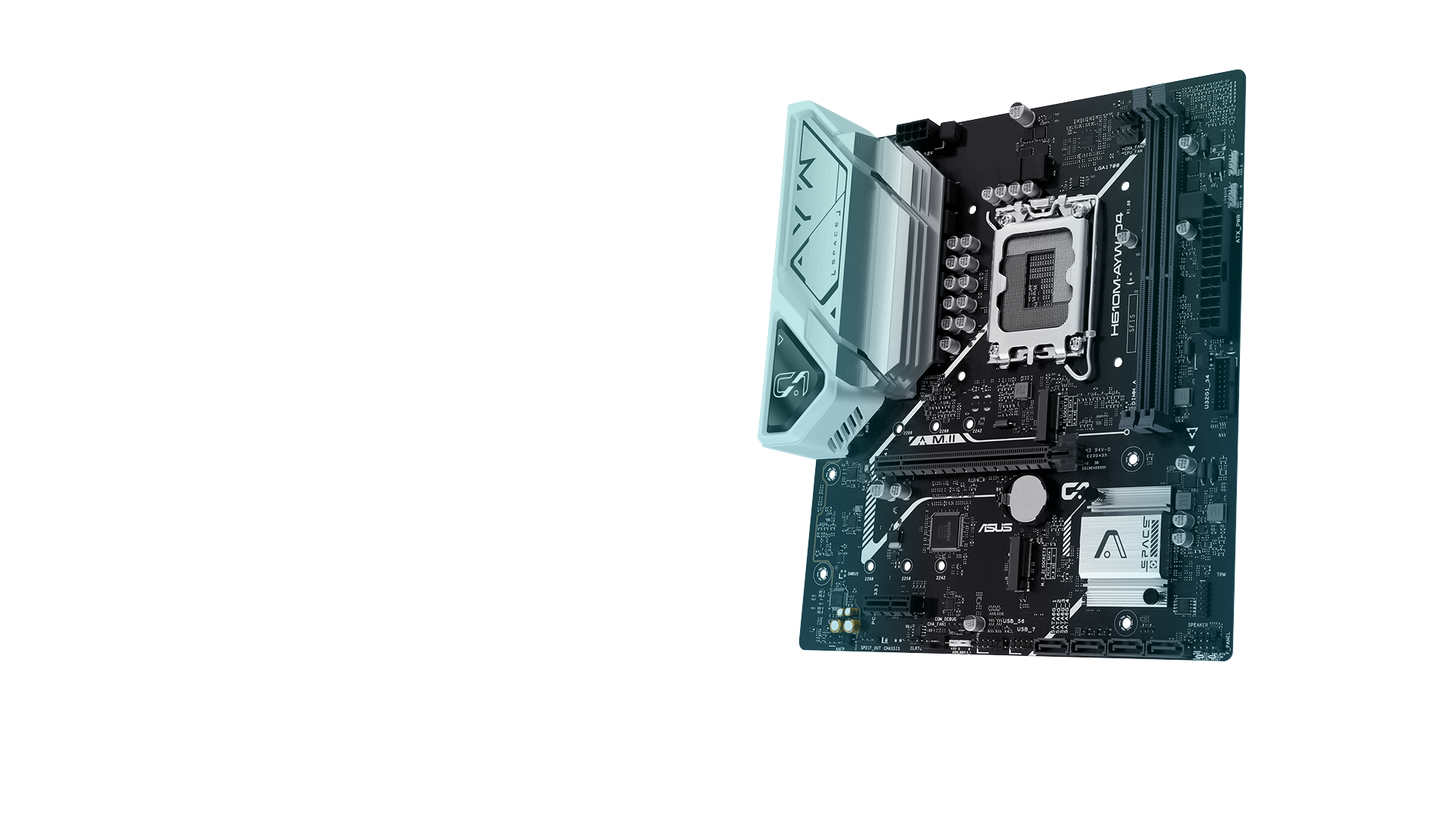

ASUS H610M-AYW D4, an Intel^® H610 LGA 1700 mATX motherboard with PCIe 4.0, two PCIe 3.0 M.2 slots, DDR4, Intel^® 1Gb Ethernet, M.2 slot (Key E) for Wi-Fi ready, DisplayPort, HDMI™, SATA 6 Gbps, USB 3.2 Gen 2, Aura Sync

Intel^® LGA 1700 Socket: Ready for 14^th, 13^thand 12^thGen Intel^® processors
Ultrafast Connectivity: PCIe 4.0, two PCIe 3.0 M.2 slots, Intel^® 1Gb Ethernet , USB 3.2 Gen 2 and front USB 3.2 Gen 1 support
Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

Compare

H610M-AYW D4

H610 Series provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.

H610M-AYW D4

Name: H610M-AYW D4
Brand: ASUS
SKU: 23743

ASUS H610 series motherboards are expertly engineered to unleash the full potential of 14^th Gen Intel^® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, H610 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

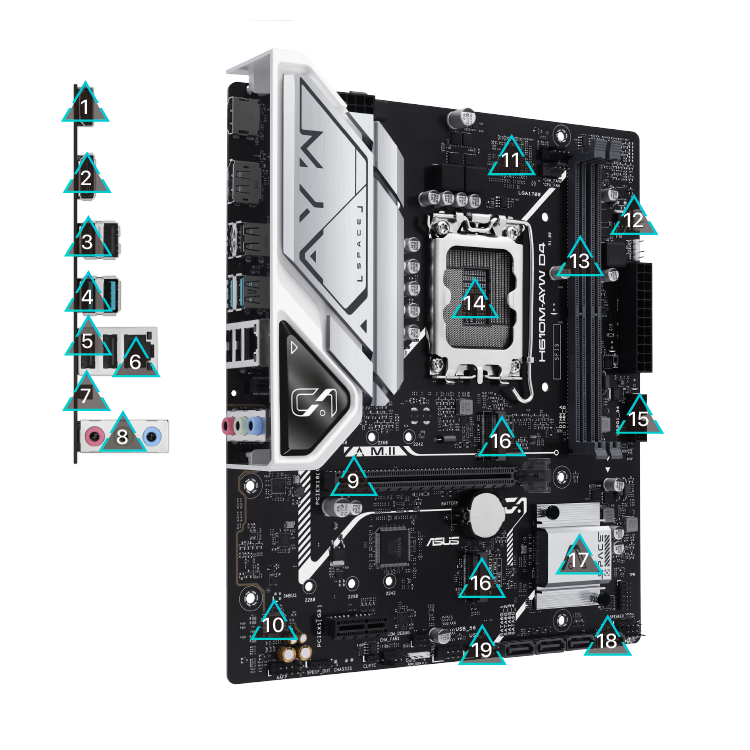

All specs of the H610M-AYW D4 motherboard

1 x HDMI™ port
1 x DisplayPort port
2 x USB 2.0 ports
2 x USB 3.2 Gen 2 ports
2 x USB 2.0 ports
Intel^® 1Gb Ethernet
Vertical M.2 slot (Key E)
3 x Audio Jacks
PCIe 4.0 x16

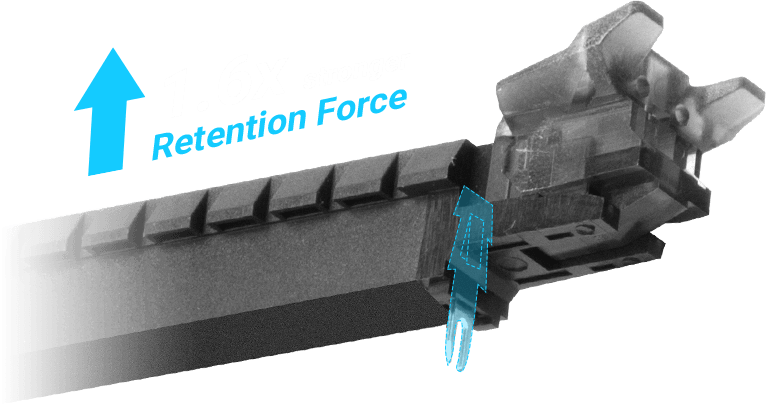

• ASUS SafeSlot Core
Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
DIGI+ VRM
3 x Addressable Gen 2 headers
2 x DDR4
• Dual Channel
Intel^® Socket LGA1700 for Intel^® Core™ 14^th & 13^th Gen Processors, Intel^® Core™ 12^th Gen, Pentium^® Gold and Celeron^® Processors
1 x USB 3.2 Gen 1 header
2 x M.2 slots
• M.2_1 slot (Key M) 2280 (PCIe 3.0 x4 mode)
• M.2_2 slot (Key M) 2280 (PCIe 3.0 x2 mode)
Intel^® H610 Chipset
4 x SATA 6Gb/s ports
2 x USB 2.0 headers

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS H610 series. The H610M-AYW D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

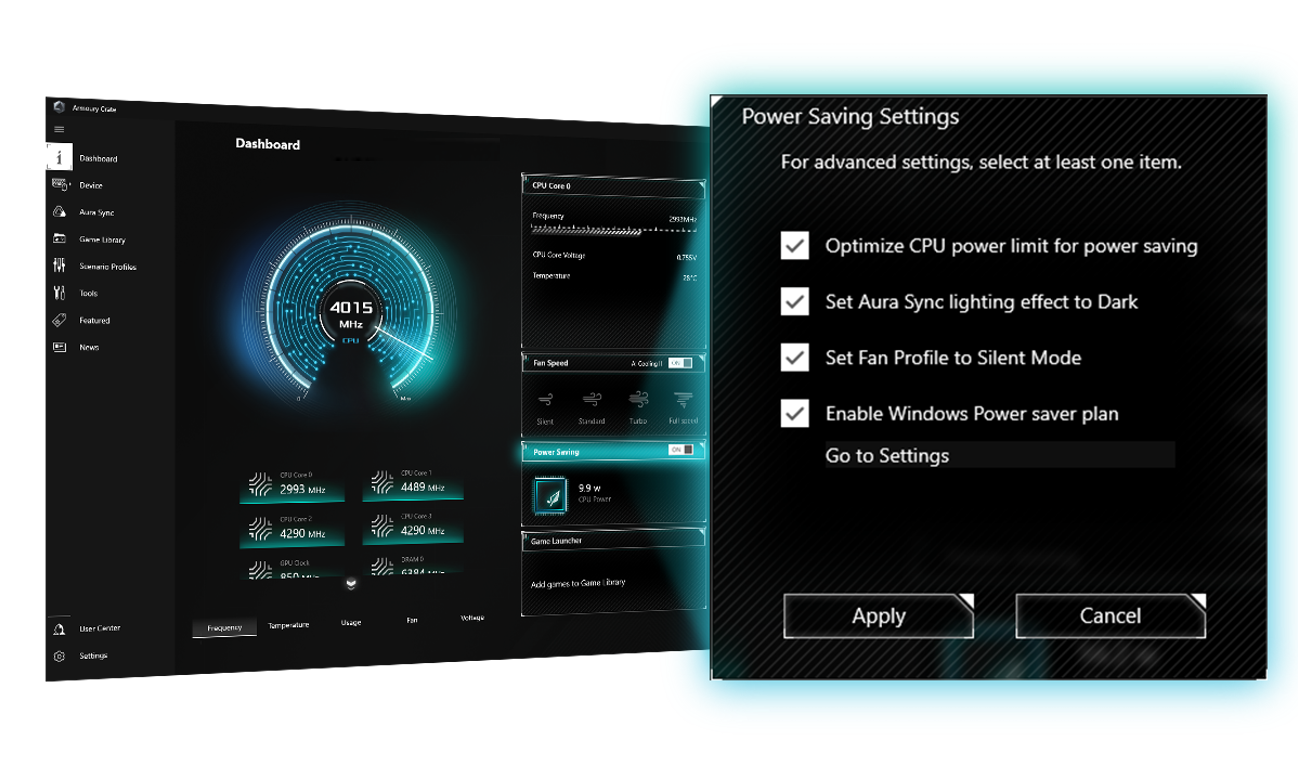

All-Around Energy Efficiency

The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function

Quickly and easily find the option or setting you need.

ASUS User Profile

Port configuration settings between different BIOS versions or share them with friends.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Intuitive Graphical Fan Control

Fine-tune individual fan settings simply by dragging a curve with the mouse.

Aura On/Off Mode (Stealth)

Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

COOLING

H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsink

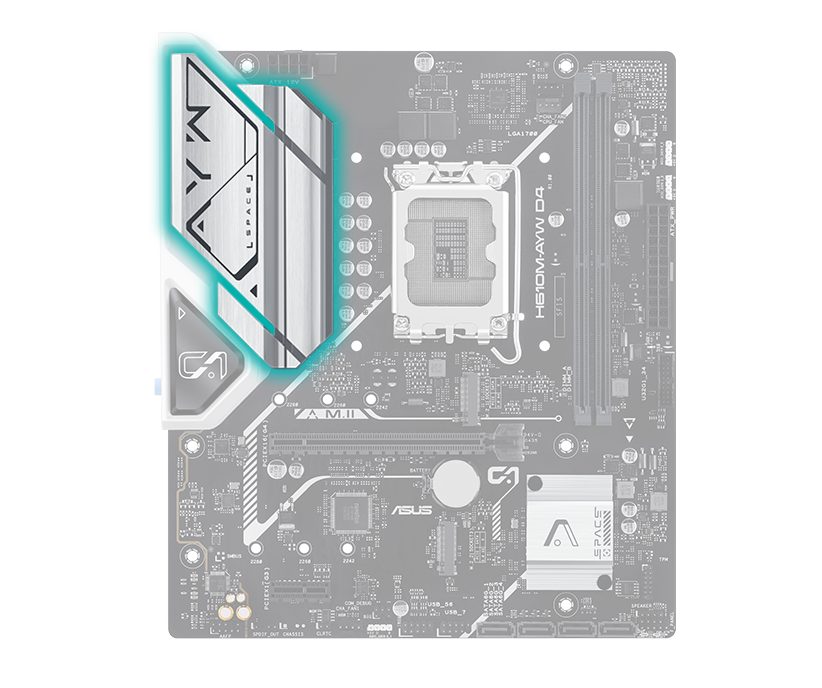

VRM Heatsink and Thermal Pad

VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance.

H610 motherboard with VRM heatsink image

PERFORMANCE

The H610 series are built to handle the high core counts and bandwidth demands of 14^th, 13^th and 12^th Gen Intel^® Processors. ASUS H610 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Memory

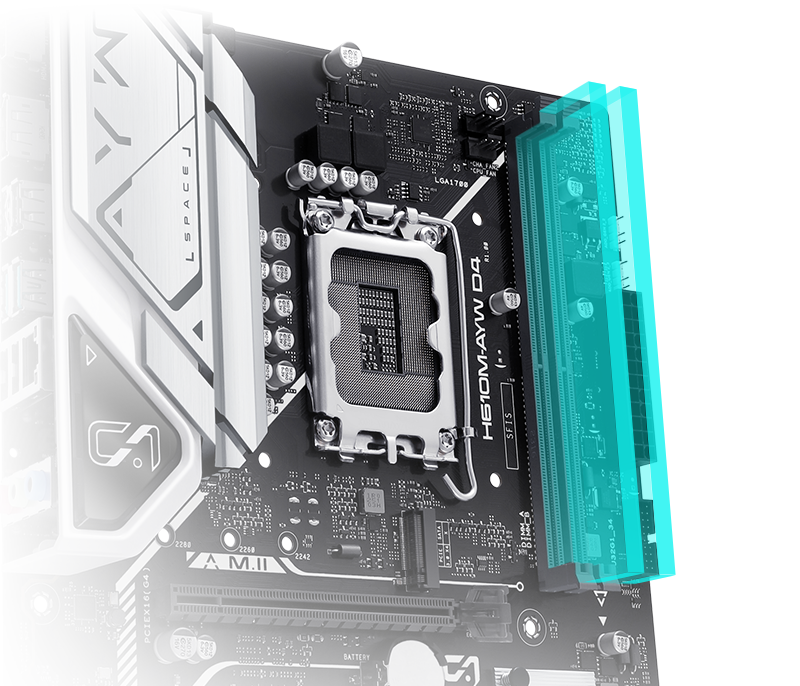

DDR4 Support

Improvements to trace routing design provide the latest Intel^® processors with enhanced access to memory bandwidth. ASUS technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

Connectivity

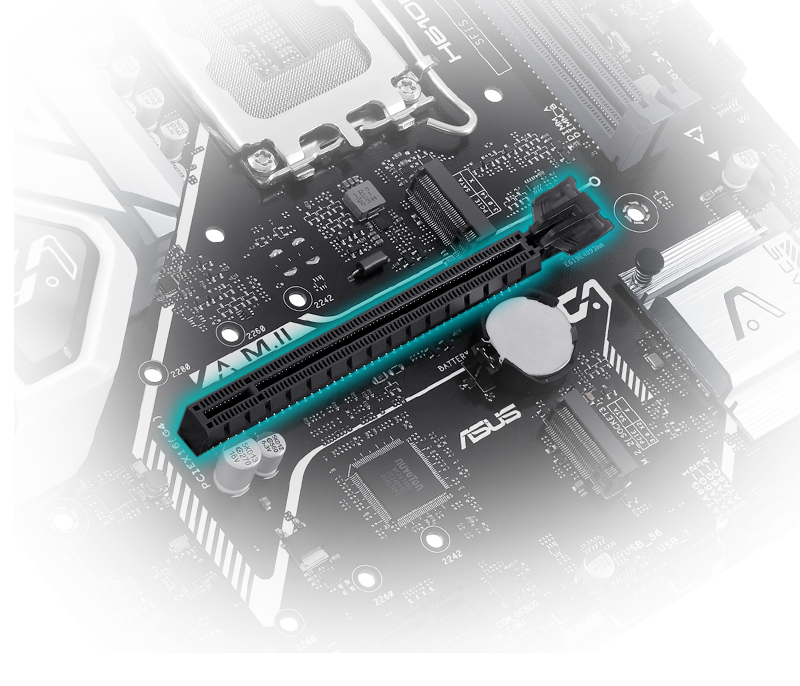

PCIe 4.0 Slot

The H610 motherboard is designed specifically for 14^th, 13^th and 12^th Gen Intel^® CPUs and offer PCIe 4.0 connectivity for the latest GPUs.

CUSTOMIZATION

H610 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding

Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

Dedicated Audio PCB Layers

Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

Premium Audio Capacitors

Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

Personalization

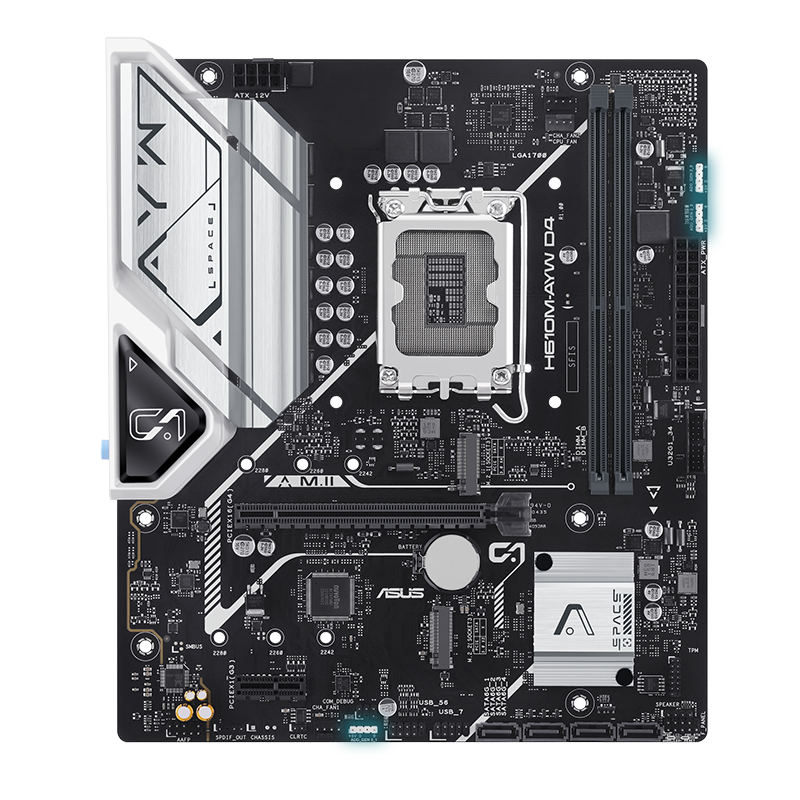

Aura Sync

Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Learn More

Static

Breathing

Strobing

Rainbow

Color Cycle

Starry Night

Music Effect

Smart

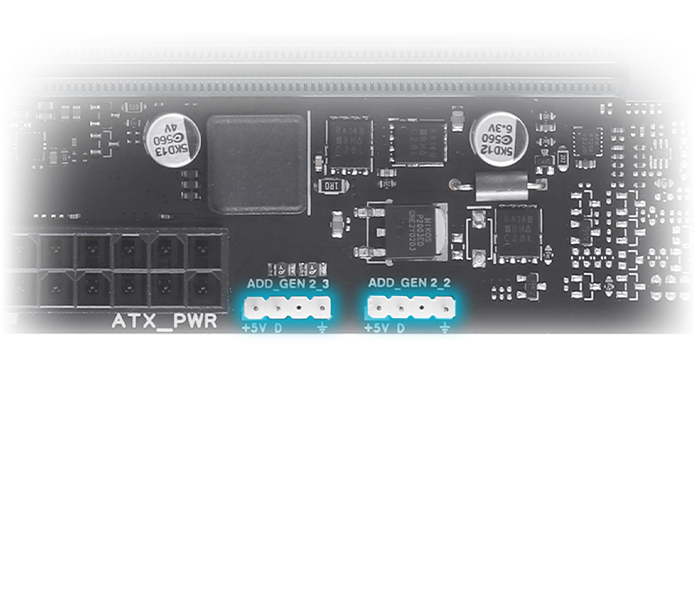

Addressable Gen 2 Headers

Three Addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

TWO-WAY AI NOISE CANCELATION

This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. This removes distracting keyboard clatter, mouse clicks and other ambient noises so you can hear and be heard with crystal clarity while gaming or in calls.

500M

Deep-learning database

Audio

Input/output

High

Fidelity

Minimal

Performance Impact

Hear the Difference

Armoury Crate

Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal , plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.
DOWNLOAD NOW

DIY Friendly

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

No DRAM Detected

Fast blinking

4 Hz (0.25s)

No VGA Detected

Slow blinking

1/2 Hz (2s)

No Boot Device Detected

Very slow blinking

1/8 Hz (8s)

Installation Completed

Solid light

Overvoltage Protection

World-class circuit-protecting power design

An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

Stainless-Steel Back I/O

3X corrosion-resistance for greater durability

Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Learn more

1000+
Compatible devices and components

600 series provides superior compatibility with thousands of components and our memory support list identifies memory compatibility, giving you more choices for worry-free PC-building experiences.

8000+
Validation hours

Every ASUS motherboard is subjected to more than 8,000 hours of stringent tests, including burn-in, environmental, compatibility, software and safety tests to confirm their durability. ASUS reliability surpasses industry standards, ensuring that every component is designed to function flawlessly in any environment.

Temperature and humidity tests

Ensures components withstand extreme conditions.

Thermal measurement tests

Ensures that the system remains cool and stable under the heaviest loads.

Insertion tests

Every port and connector is put through repeated installation cycles.

Aging tests

Up to 48-hour aging test ensures reliability.

Power-consumption tests

Checked for world-class energy efficiency.

Temperature and DC margin tests

Ensures that the motherboard is capable of coping with voltages fluctuations caused by varying temperatures.

Thermal-shock tests

Ensures ability to survive temperature changes during transportation.

Non-operation shock tests

Built to withstand jolts that may occur during shipping.

Burn-in tests

Every component is checked to ensure flawless operation.

Installation tests

Connector placement is double-checked to ensure hassle-free installation.

Drop tests

Drop tests from various heights ensure durability.

Salt and spray tests

Tested for I/O reliability, prolonged lifespan and rust-resistance.

Scroll down

Timeline Backup
Auto Backup for Your Computer!

ASUS user’s special offer.｜Buy 1TB get 200GB free.

Exclusive AEMP

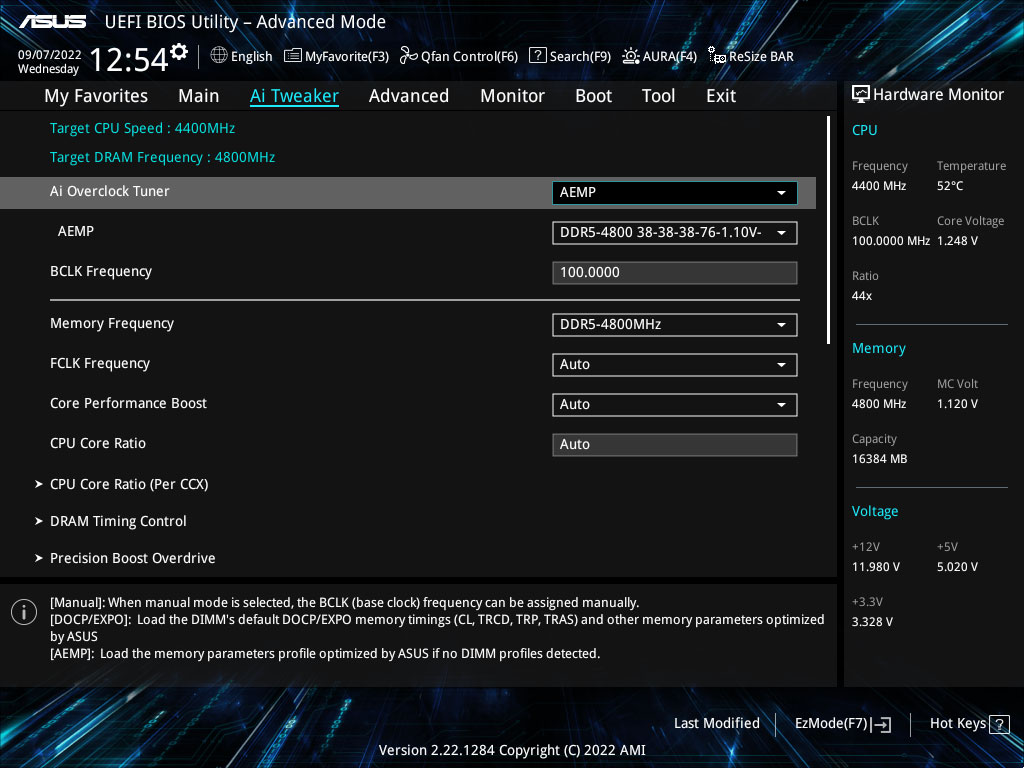

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

+INFO

Cargando...

ASUS Prime AP202

Support GPU up to 420mm in length
Curved tempered glass panel
Easy-detach rail
Patented slot vent
Integrated ARGB light band
Three pre-installed ARGB fans

Learn more

NEW

ASUS Prime MR120 ARGB Fan - Single Pack

Extra-thick 28mm frame
Quietly operates at 21 dB(A)
20 Addressable RGB LEDs
Dual-sided frame lighting
PWM control
Aura Sync compatible

Learn more

NEW

ASUS Prime AP202 ARGB

Support GPU up to 420mm in length
Curved tempered glass panel
Easy-detach rail
Patented slot vent
Integrated ARGB light band
Three pre-installed ARGB fans

Learn more

NEW

TUF Gaming GT502 Horizon ARGB

Support GPU up to 400mm in length
Dual-chamber chassis with independent cooling zones for GPU and CPU
Boundless panoramic design offers a fully unobstructed view
Front panel high-speed USB Type-C^® for high-speed data transfers
Pre-installed four ARGB Fans
Fully modular design

Learn more

NEW

ASUS A31 PLUS Case

Support GPU up to 380mm in length
Hidden Connectors
Broad Compatibility
80mm Top AIO Clearance
8° Angled Base
4 pre-installed ARGB fans

Learn more

TUF Gaming GT502 Horizon

Support GPU up to 400mm in length
Dual-chamber chassis with independent cooling zones for GPU and CPU
Boundless panoramic design offers a fully unobstructed view
Front panel high-speed USB Type-C^® for high-speed data transfers
Tool-free side panels
Fully modular design

Learn more

TUF Gaming ARGB PWM Fan Hub

Connect up to six case fans
PWM fan and RGB connection
Visible power and operation indicators
Simple magnetic mounting
Dual SATA power connector
Two safety fuses

Learn more

TUF Gaming ARGB Lighting Kit for GT502 Horizon Series

TUF Gaming ARGB Lighting Kit for GT502 Horizon Series

Vibrant System Lighting
Magnetic Design
Up to 20,000 Hours of Durability
Aura Sync
Black and white

Learn more

ASUS AR120 ARGB PWM Single Pack

Extra-thick 28mm frame
Hydraulic Bearing
PWM control
Aura Sync compatible

Learn more

ASUS A21 PLUS Case

Support GPU up to 380mm in length
Hidden Connectors
Broad Compatibility
Capable Cooling
Cable management space
Color matching cable

Learn more

TUF Gaming GT302 ARGB

Support GPU up to 407mm in length
Extreme cooling with four 140x28 ARGB fans
Interchangeable side panel
Removable top panel
Support motherboards' hidden connectors design
Support 360 AIO on top and 40-series graphics cards

Learn more

GT710-SL-2GD5

ASUS GeForce^® GT 710 great value graphics with passive 0dB efficient cooling

Learn more

H610M-AYW D4

H610M-AYW D4

H610M-AYW D4

Specification

Gallery

1 x HDMI™ port

1 x DisplayPort port

2 x USB 2.0 ports

2 x USB 3.2 Gen 2 ports

2 x USB 2.0 ports

Intel® 1Gb Ethernet

Vertical M.2 slot (Key E)

3 x Audio Jacks

PCIe 4.0 x16 • ASUS SafeSlot Core

Audio Features • Audio Shielding • Premium audio capacitors • Dedicated audio PCB layers

DIGI+ VRM

3 x Addressable Gen 2 headers

2 x DDR4 • Dual Channel

Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

1 x USB 3.2 Gen 1 header

2 x M.2 slots • M.2_1 slot (Key M) 2280 (PCIe 3.0 x4 mode) • M.2_2 slot (Key M) 2280 (PCIe 3.0 x2 mode)

Intel® H610 Chipset

4 x SATA 6Gb/s ports

2 x USB 2.0 headers

.clll1, .clll3 { fill: #5e5e5e; } .clll1, .clll2 { opacity: 0.35; } FLEXIBILITY .clll1, .clll3 { fill: #5e5e5e; } .clll1, .clll2 { opacity: 0.35; }

Comprehensive controls form the foundation of the ASUS H610 series. The H610M-AYW D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

All-Around Energy Efficiency

Flexible Air-Cooling Controls

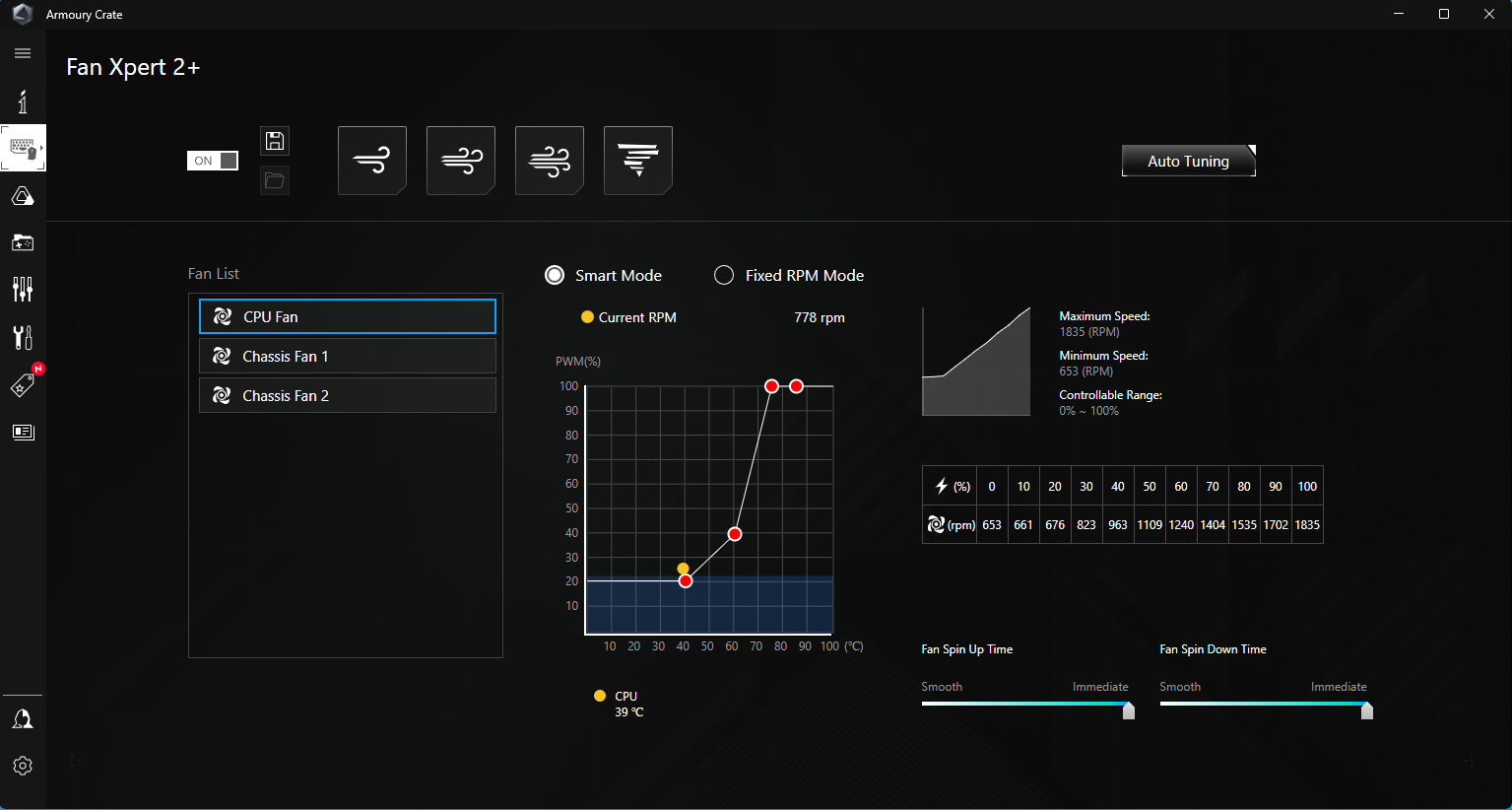

ASUS Fan Xpert 2+ software provides comprehensive control over fan. There’s an Extreme Quiet mode that reduces fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fan can also be controlled via the UEFI BIOS.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Search Function

Quickly and easily find the option or setting you need.

ASUS User Profile

Port configuration settings between different BIOS versions or share them with friends.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Intuitive Graphical Fan Control

Fine-tune individual fan settings simply by dragging a curve with the mouse.

Aura On/Off Mode (Stealth)

Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

.clll1, .clll3 { fill: #5e5e5e; } .clll1, .clll2 { opacity: 0.35; } COOLING .clll1, .clll3 { fill: #5e5e5e; } .clll1, .clll2 { opacity: 0.35; }

H610 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsink

VRM Heatsink and Thermal Pad

VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance.

Cooler by Design

H610 series features comprehensive cooling controls that are configurable via FAN Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. FAN Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

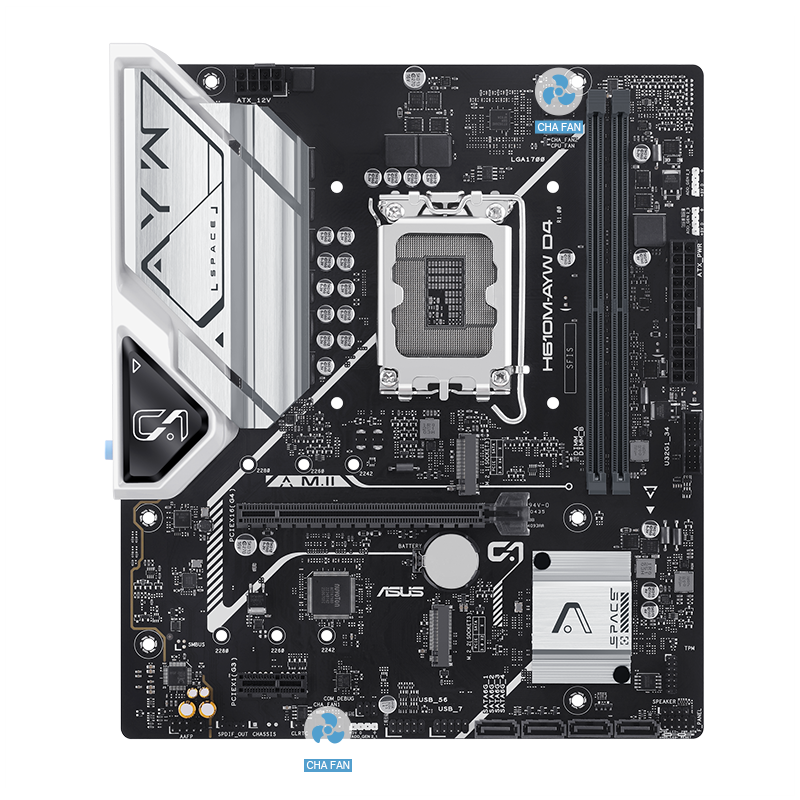

4-Pin PWM/DC Fan

All onboard chassis fan headers support auto-detection of PWM or DC fans.

.clll1, .clll3 { fill: #5e5e5e; } .clll1, .clll2 { opacity: 0.35; } PERFORMANCE .clll1, .clll3 { fill: #5e5e5e; } .clll1, .clll2 { opacity: 0.35; }

Memory

DDR4 Support

Improvements to trace routing design provide the latest Intel® processors with enhanced access to memory bandwidth. ASUS technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

Storage

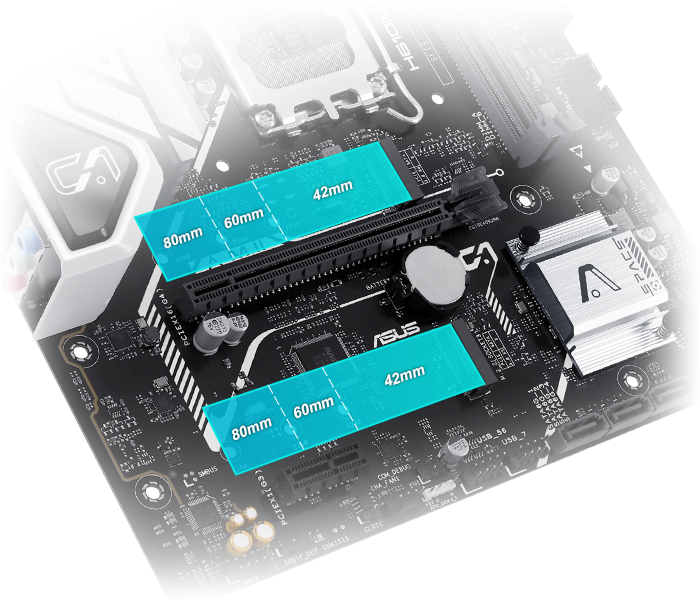

Dual M.2 slots

H610M-AYW D4 offers two M.2 slots. One of the M.2 Slots supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.

Connectivity

PCIe 4.0 Slot

The H610 motherboard is designed specifically for 14th, 13th and 12th Gen Intel® CPUs and offer PCIe 4.0 connectivity for the latest GPUs.

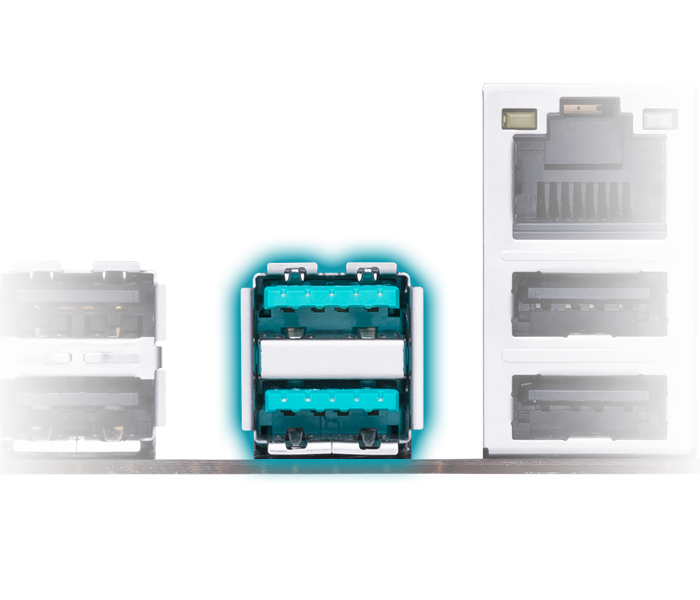

USB 3.2 Gen 2 ports

Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A ports with fast USB 3.2 Gen 2 for transmission speeds of up to 10 Gbps.

Intel® 1 Gb Ethernet

Intel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

LANGuard

ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.

.clll1, .clll3 { fill: #5e5e5e; } .clll1, .clll2 { opacity: 0.35; } CUSTOMIZATION .clll1, .clll3 { fill: #5e5e5e; } .clll1, .clll2 { opacity: 0.35; }

H610 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding

Intel^® 1Gb Ethernet

PCIe 4.0 x16
• ASUS SafeSlot Core

Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

2 x DDR4
• Dual Channel

Intel^® Socket LGA1700 for Intel^® Core™ 14^th & 13^th Gen Processors, Intel^® Core™ 12^th Gen, Pentium^® Gold and Celeron^® Processors

2 x M.2 slots
• M.2_1 slot (Key M) 2280 (PCIe 3.0 x4 mode)
• M.2_2 slot (Key M) 2280 (PCIe 3.0 x2 mode)

Intel^® H610 Chipset

FLEXIBILITY

COOLING

PERFORMANCE

Improvements to trace routing design provide the latest Intel^® processors with enhanced access to memory bandwidth. ASUS technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

The H610 motherboard is designed specifically for 14^th, 13^th and 12^th Gen Intel^® CPUs and offer PCIe 4.0 connectivity for the latest GPUs.

Intel^® 1 Gb Ethernet

Intel^® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

CUSTOMIZATION

1000+
Compatible devices and components

8000+
Validation hours
