TUF GAMING A620AM-PLUS

TUF GAMING
A620AM-PLUS

ASUS TUF GAMING A620AM-PLUS takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

8+2+1

phase digital power design
AEMP

for enhanced DDR5 performance
PCIe 4.0 for Graphics Card

robust to handle new data-heavy tasks
Empowering Connectivity

front USB 5Gbps Type-C^® for rapid data transmission
Intelligent Control

AI Cache Boost, ASUS DriverHub, UEFI BIOS, Armoury Crate
2.5Gb Ethernet

faster data transfer
DIY Friendly

M.2 Q-Latch, Q-LED Core, BIOS FlashBack™
Cooler by Design

for ultimate cooling control
Aura Sync

full RGB lighting control

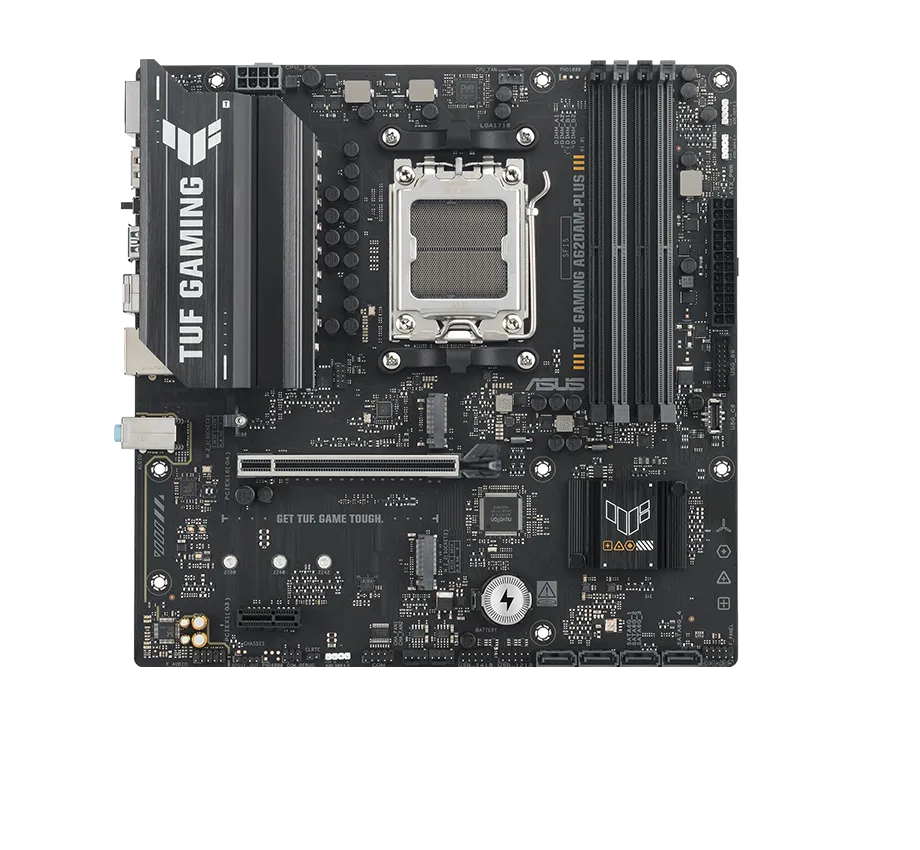

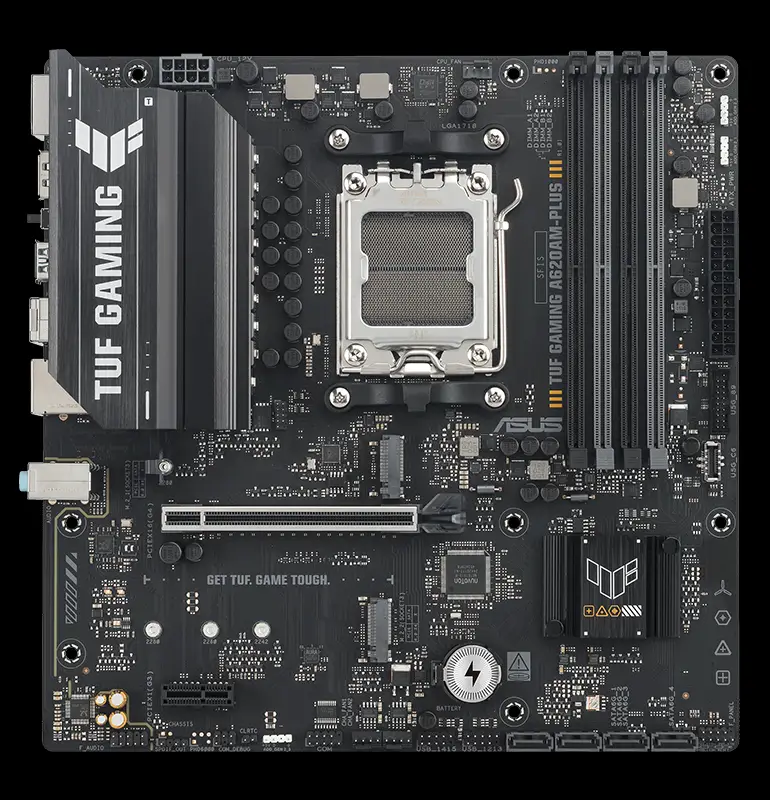

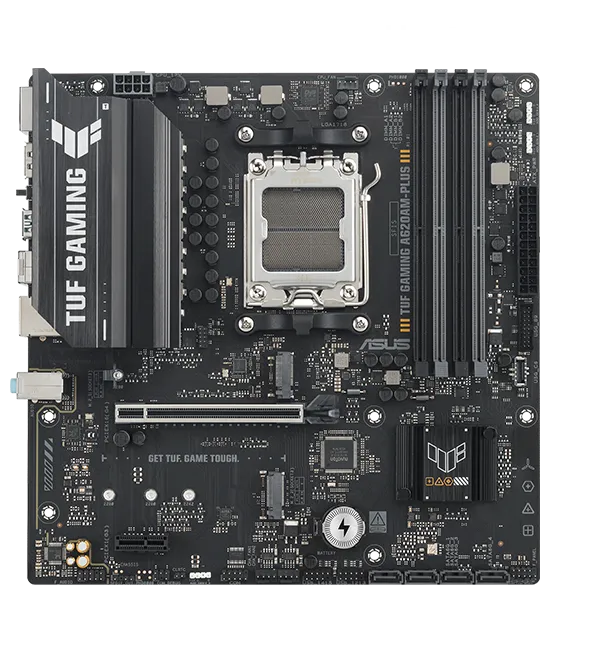

TUF Gaming motherboard front view, with Aura lighting

AM5 Socket for AMD Ryzen™ Desktop Processors

Expansion Slots
» 1 x PCIe 4.0 x16 SafeSlot Core+
» 1 x PCIe 3.0 x1

8+2+1 Phase Digital Power Design

4 x DIMM
» DDR5
» Dual Channel
» AEMP

2 x M.2 Slots
» 1 x M.2 2280 PCIe 4.0 x4
» 1 x M.2 2242/2260/2280 PCIe 4.0 x4

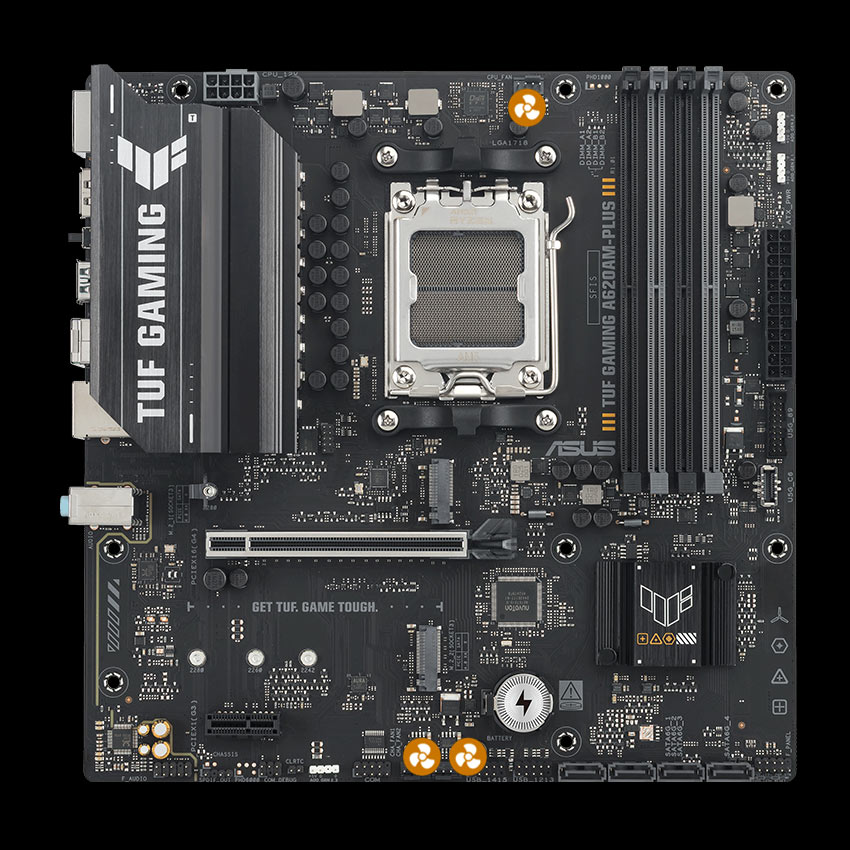

TUF Gaming motherboard front view, 45 degrees

VRM Heatsink

CPU Fan Header

Chipset Heatsink

2 x Chassis Fan Headers

TUF Gaming motherboard front view, 60 degrees, with Aura lighting

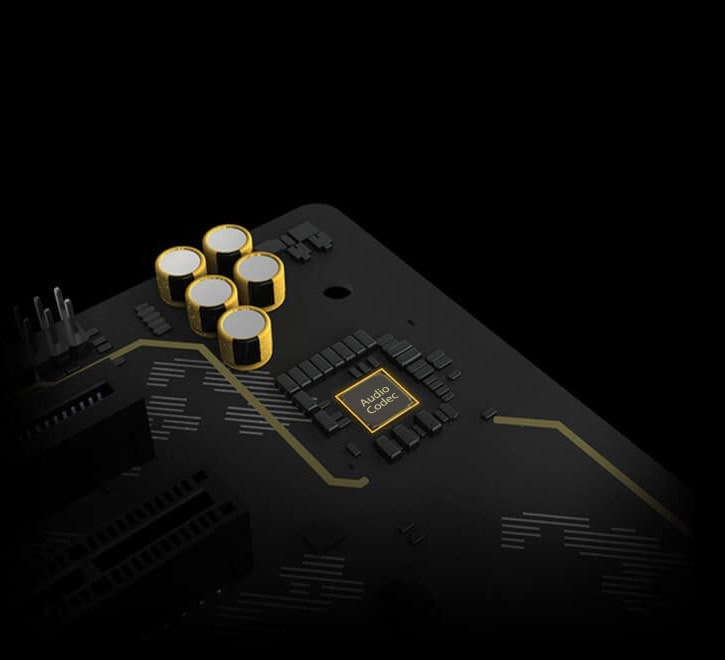

Realtek Audio Codec
» Audio Shielding
» Dedicated Audio PCB Layers
» Premium Audio Capacitors

3 x Addressable RGB Gen 2 Headers

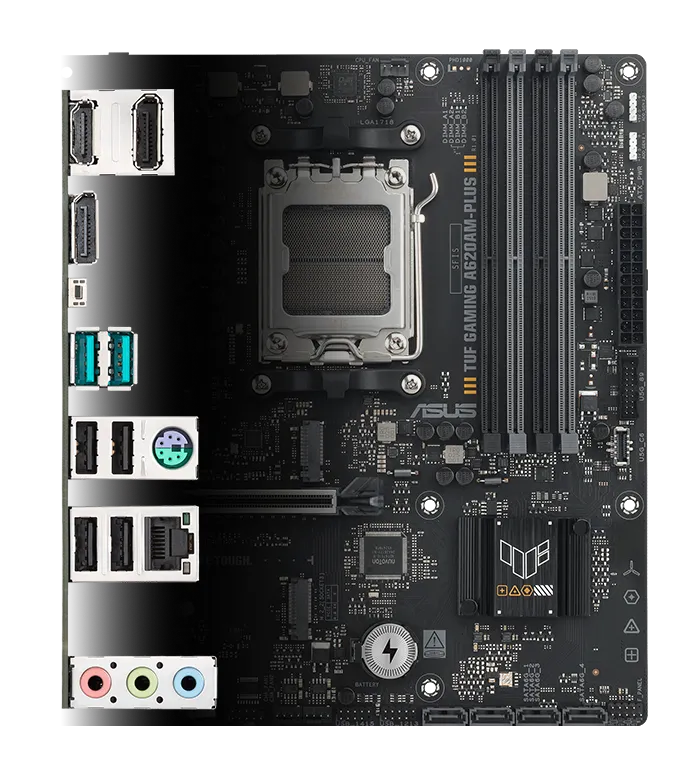

TUF Gaming motherboard front view, with Aura lighting, and I/O shield

2 x DisplayPort
HDMI™

BIOS FlashBack™ Button

2 x USB 10Gbps

4 x USB 2.0

Realtek 2.5Gb Ethernet

3 x Audio Jacks

1 x USB 5Gbps Header

1 x USB 5Gbps Type-C^® Connector

2 x USB 2.0 Headers

Intelligent

Intelligent Control

AI Cache Boost

Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Armoury Crate

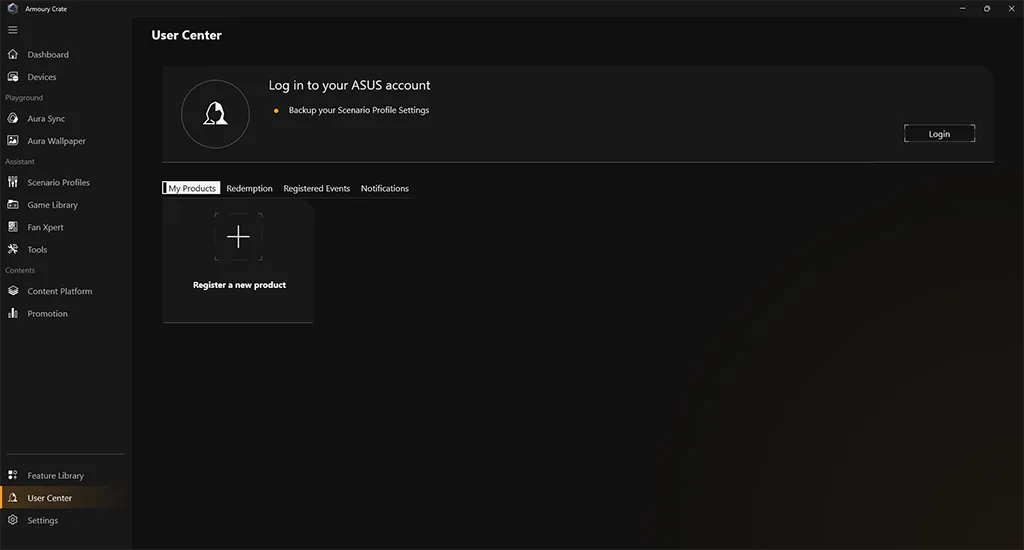

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Close-up of an AM5 CPU socket on TUF GAMING A620AM-PLUS.

Performance

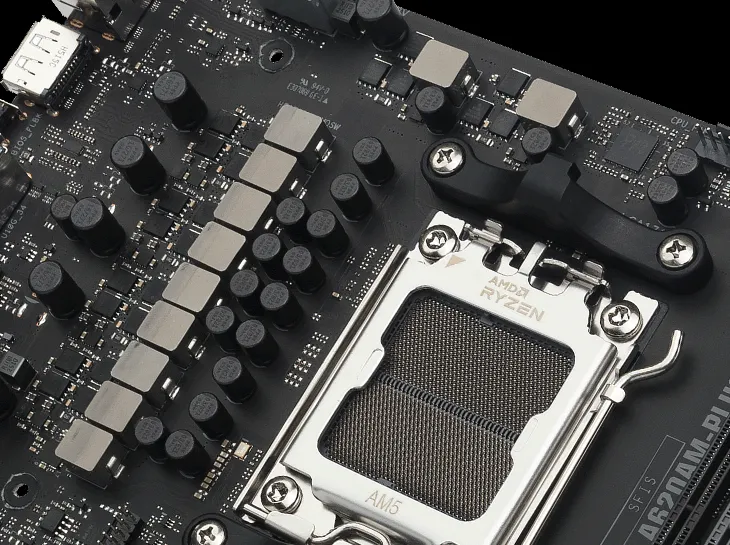

Digital Power Design

TUF GAMING A620AM-PLUS series motherboards feature an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.

Vcore Power

SOC Power

Misc Power

Six Layered PCB Design

Enhanced stability.

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

Digi+ VRM Control

Real-time voltage control.

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

Performance

Memory & Storage

DRAM Overclocking Performance

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.

Up to DDR5 7600+ MT/s(OC)

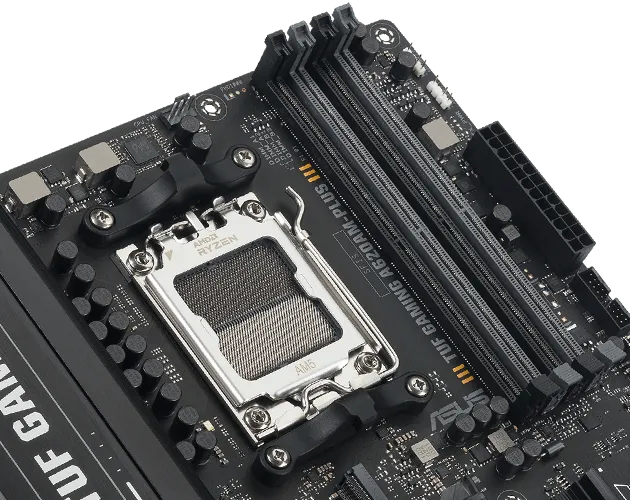

Close-up of TUF GAMING A620AM-PLUS showing DDR5 memory slots with a label indicating support for DDR5 modules up to 8000+ MHz.

DDR5 DOMINANCE

For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

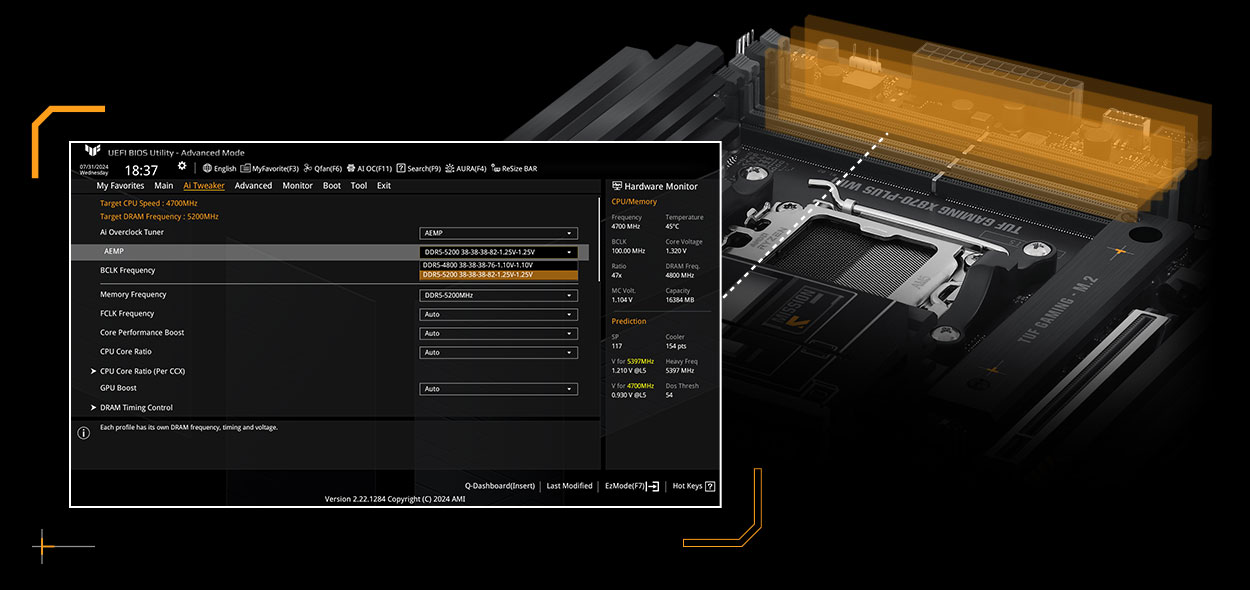

ASUS AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

M.2 PCIe 4.0 Support

Dual M.2 slots support up to PCIe 4.0 and also provide NVMe SSD RAID support for incredible performance potential. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fast data transfer speeds.

Bandwidth (Gbps)

PCIe 4.0 x4

PCIe 3.0 x4

* Actual transmission speed will be lower than theoretical maximum speed.

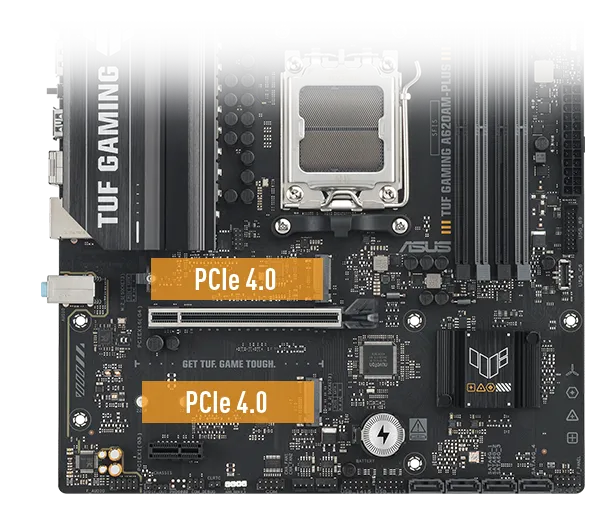

TUF GAMING A620AM-PLUS with two highlighted PCIe slots labeled PCIe 4.0. The slots are emphasized in orange.

Cooling

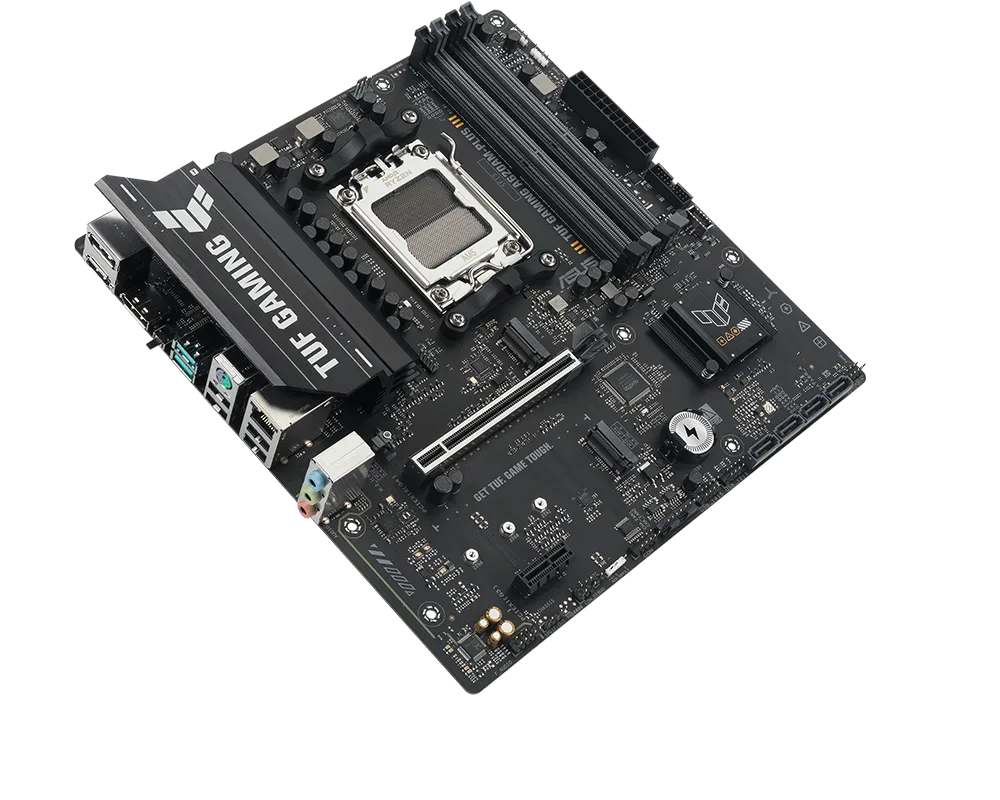

Cooler by Design

TUF Gaming motherboard front view with I/O ports

Enhanced VRM Heatsink

Smart Fan Protect

4-Pin PWM/DC Fan

Superb Chipset Heatsink

Multi Temperature Source

Cooling

Cooler Compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

Learn more about compatible AIO Coolers

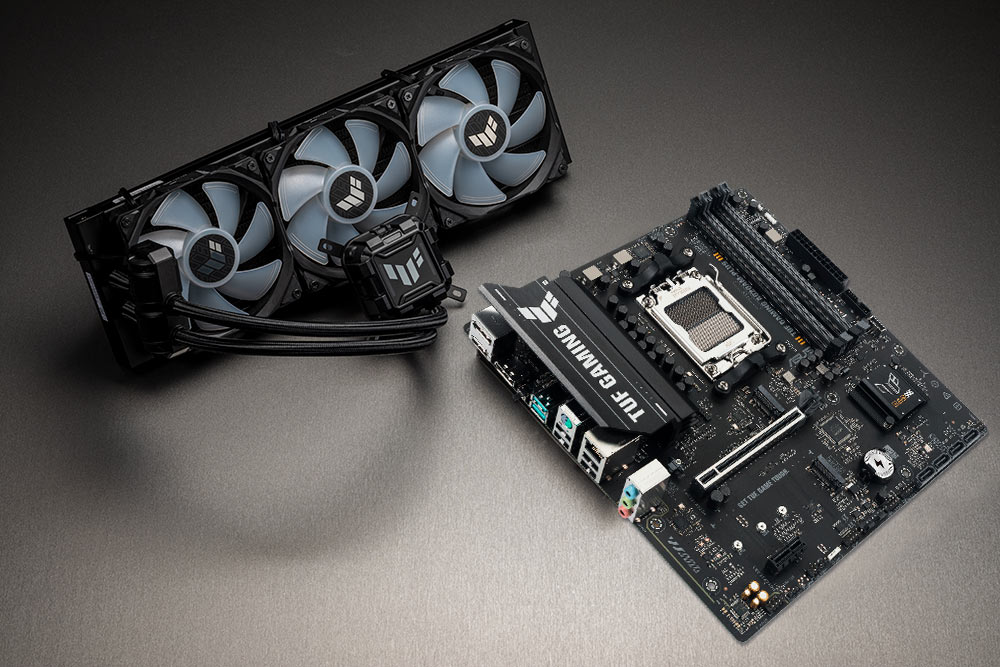

TUF GAMING A620AM-PLUS motherboard standing upright next to a compatible ASUS AIO cooler, illustrating cooler compatibility for high-performance gaming builds.

Connectivity

Empowering Connection

This motherboard offers a versatile range of connectivity with PCIe 4.0, rear USB 10Gbps Type-A ports and front USB 5Gbps Type-C^® connector.

PCIe 4.0 for Graphics Card

TUF GAMING A620AM-PLUS series motherboards offer PCIe 4.0 slot connectivity for the GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

Aggregate Bandwidth (Gbps)

PCIe 3.0 x16

128

PCIe 4.0 x16

256

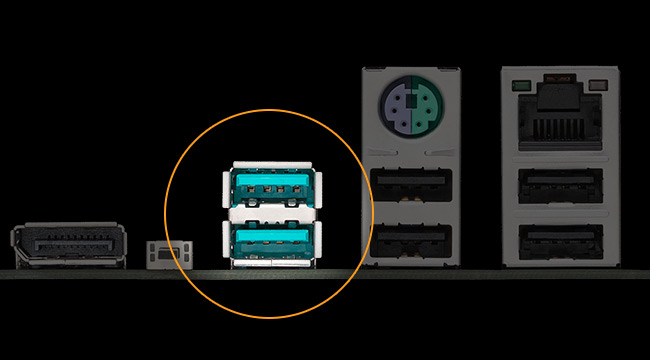

Rear USB 10Gbps Type-A

Extensive USB support ensures connections to a wide array of external devices. This motherboard includes two USB 10Gbps Type-A ports on the rear I/O panel that delivers transfer speeds of up to 10Gbps.

Rear I/O panel of TUF GAMING A620AM-PLUS motherboard with a magnified inset highlighting a USB 10Gbps Type-A port among other ports, showing support for high-speed connections.

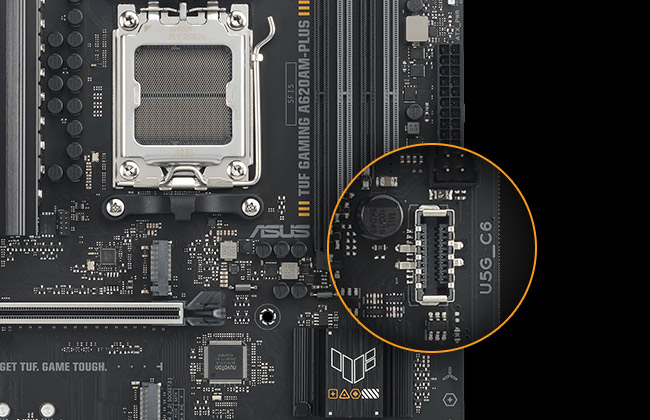

Front USB 5Gbps Type-C^®

This motherboard features a USB 5Gbps Type-C^® front panel connector for speedy data transfers of up to 5Gbps.

TUF GAMING A620AM-PLUS motherboard with a magnified inset highlighting a front panel USB 5Gbps Type-C port, showing support for high-speed connections.

DIY

Easy PC DIY

M.2 Q-Latch

The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

* Video for reference only.

Q-LED Core

The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

No CPU
Detected

Fast blinking

4 Hz (0.25s)

No VGA
Detected

Slow blinking

1/2 Hz (2s)

No Boot Device
Detected

Very Slow blinking

1/8 Hz (8s)

Installation
Completed

Solid light

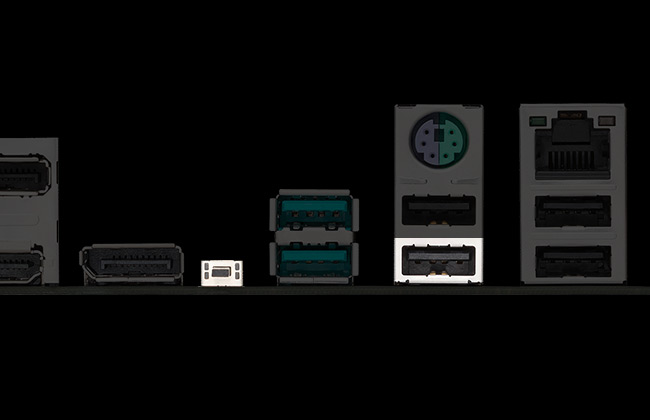

BIOS FlashBack™

BI0S FlashBack™ is a safe and simple way to update Bl0S. Just drop the (UEFI) BlOS file onto a FAT32-formatted USB stick, plug it into the USB BlOS FlashBack™ port, and press the button. Updates can even be performed without having memory or a CPU installed.

DIY

Protection

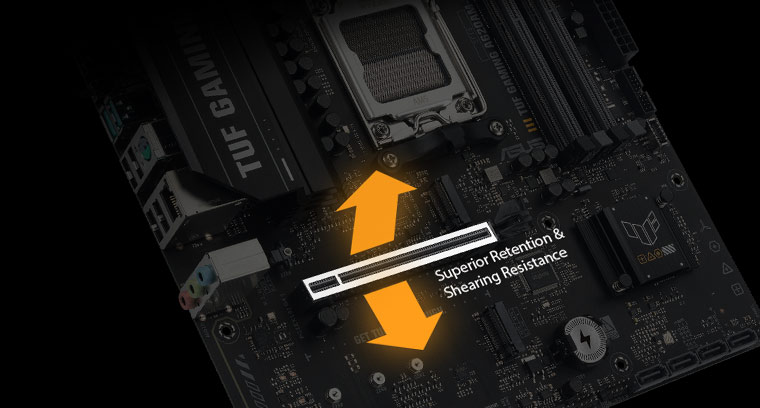

SafeSlot Core+

SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

ESD Guards

ASUS added special TVS diodes to boost electrostatic discharge prevention by up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge – well above the industry standard.

TUF LANGuard

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, helping to protect the motherboard from lightning strikes and static electricity.

2.5X HIGHER SURGE TOLERANCE

Line to Ground

15KV

6KV

TUF LANGuard

Traditional LAN port

* ESD result is undertaken by individual LANGuard

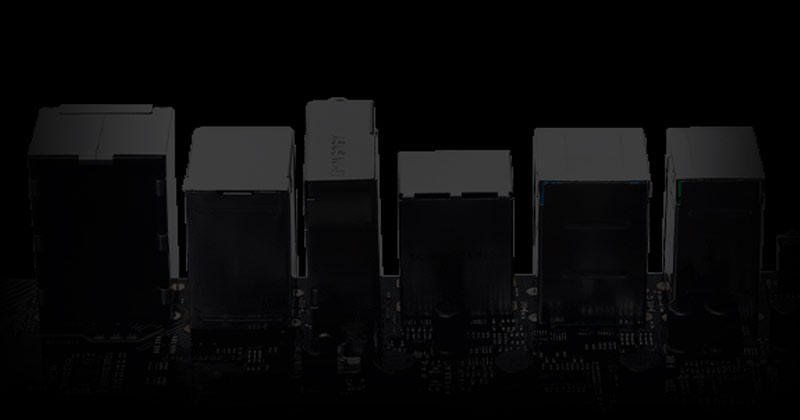

Stainless Steel Back I/O Panel

TUF Gaming motherboards feature a corrosion-resistant stainless steel rear I/O panel with up to a 3X longer lifespan. These models pass a rigorous 72-hour salt fog test, surpassing the industry standard.

3 x

Longer Lifespan

72 hr

Salt Fog Testing

play/pause

DIY

Build With Confidence

TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.

Learn more about TUF Gaming Alliance

Gaming

Ultrafast Networking

Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.

2.5Gb Ethernet

On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 2.5X faster than 1Gb connections.

Audio

Realtek 7.1 Channel Audio

The unique audio codec designed in close collaboration with Realtek for TUF GAMING A620AM-PLUS series motherboards feature an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.

Lighting

Outshine The Competition

ASUS Aura Sync offers synchronized lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.

Addressable RGB Gen 2 Header

Automatically optimize lighting effects for the number of LEDs present in compatible ARGB gear.

The words 'TUF GAMING' displayed with gradient lighting effects, illustrating dynamic RGB lighting capabilities.

In Search of
Sustainable Solution

ASUS is on a mission to create a sustainable future where all can flourish on the planet we call home.

Every step counts, and as part of ASUS’s commitment to creating a more sustainable future, ASUS has begun to utilize post-consumer recycled (PCR) plastic and paper materials certified by the Forest Stewardship Council (FSC™) in the packaging of motherboard.

Join us on our journey as we make the world a better place.

THIS CHANGES EVERYTHING

From this new platform,
you can see the future

1. Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by the system manufacturer or retailer. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability. GD-106.

© 2024 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, Radeon, Ryzen and combinations thereof are trademarks of Advanced Micro Devices, Inc. Other product names used in this publication are for identification purposes only and may be trademarks of their respective owners.

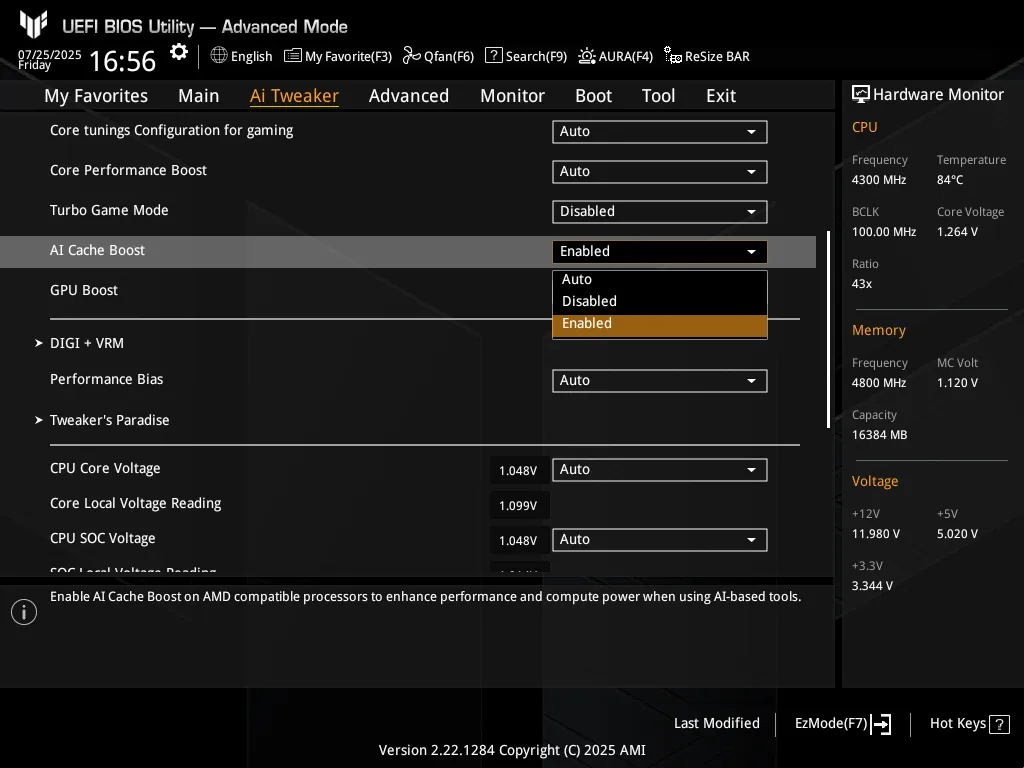

AI Cache Boost

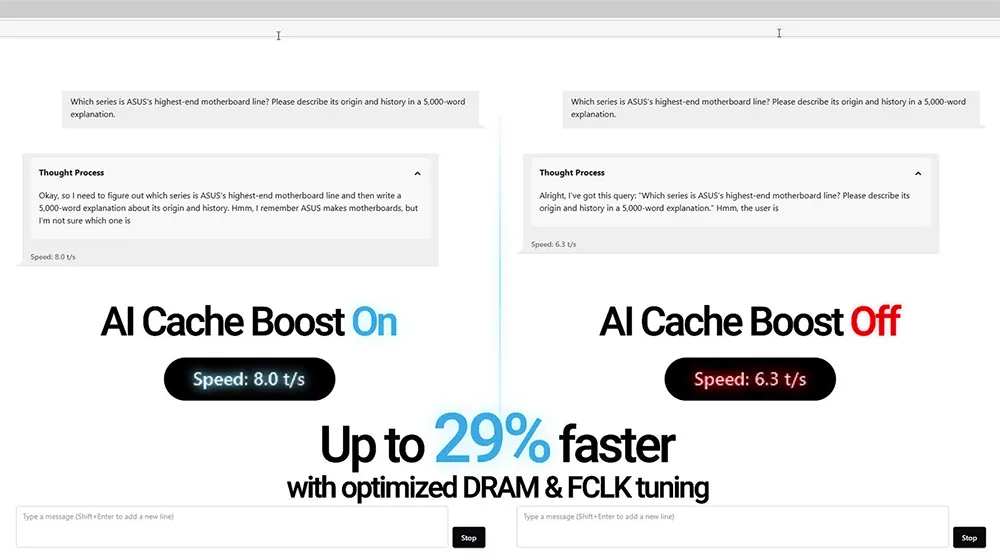

Increase AI LLM performance up to 29% with AI Cache Boost

TOKENS PER SECOND
BENCHMARK

With an ASUS AMD 600 or 800 series motherboard and a Ryzen™ 9000 series CPU, you can enable the AI Cache Boost setting in the BIOS. This feature applies comprehensive optimizations to CPU cache and memory pathways, greatly reducing the typical performance drop that can happen when VRAM is used up.
Internal testing determined that enabling AI Cache Boost delivered up to a 15% performance uplift when running large language models that exceeded graphics card memory. With high-speed DDR5 memory and additional Infinity Fabric clock (FLCK) speed tuning, this performance uplift nearly doubled.
For enthusiasts, creators or anyone who wants a powerful AI model capable of deep reasoning and natural conversation running on their own hardware, they can enjoy these uplifts today with AI Cache Boost.

AMD Ryzen 7 9800X3D - RX9070XT-16GB -
ROG Crosshair X870E Hero

Default: 6.35

AI Cache Boost: 7.31

+15.12%

AI Cache Boost: 8.2
(EXPO8000 + FCLK 2200MHz)

+29.13%

AMD Ryzen 7 9800X3D - RTX5080-16GB -
ROG Crosshair X870E Hero

Default: 6.01

AI Cache Boost: 6.96

+15.81%

AI Cache Boost: 7.64
(EXPO8000 + FCLK 2200MHz)

+27.12%

Check out the demo video below

Run AI applications on your PC more smoothly with AI Cache Boost

AMD Ryzen 9 9950X3D - RTX 4090 - ROG Crosshair X870E Hero

Geekbench AI
(Higher is better)

Default: 51786

AI Cache Boost: 54392

+5.03%

AI Cache Boost & Turbo Game Mode: 56757

+9.60%

UL Procyon - AI Computer Vision Benchmark
(Higher is better)

Default: 1426

AI Cache Boost: 1485

+4.14%

AI Cache Boost & Turbo Game Mode: 1702

+19.0%

Topaz Video AI
(Lower is better)

Default: 153 sec

AI Cache Boost: 148 sec

+3.27%

AI Cache Boost & Turbo Game Mode: 145 sec

+5.23%

AMD Ryzen 7 9800X3D - RTX 4090 - ROG Crosshair X870E Hero

UL Procyon - AI Computer Vision Benchmark
(Higher is better)

Default: 1490

AI Cache Boost: 1680

+12.75%

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

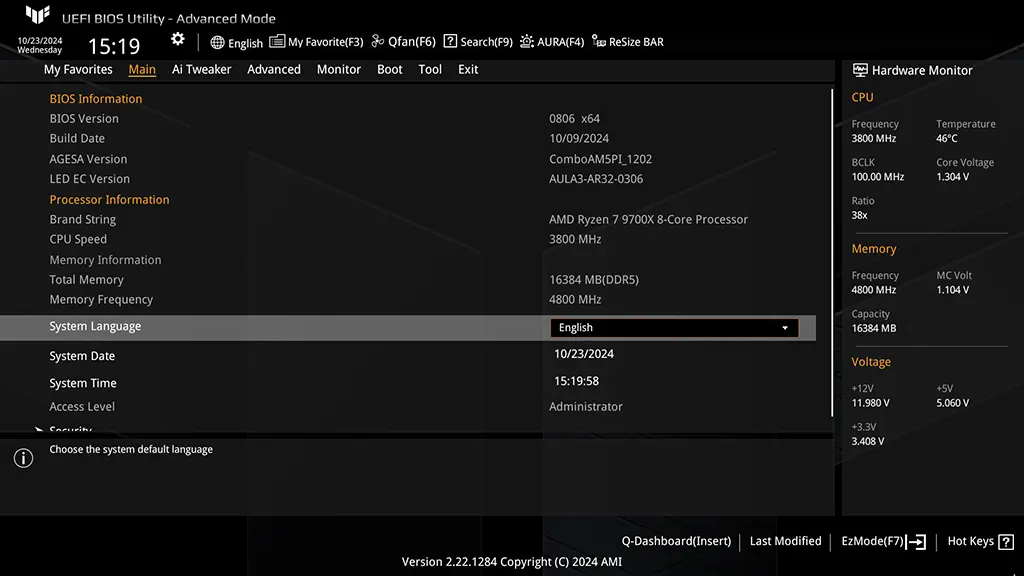

Advanced Mode
EZ Mode

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

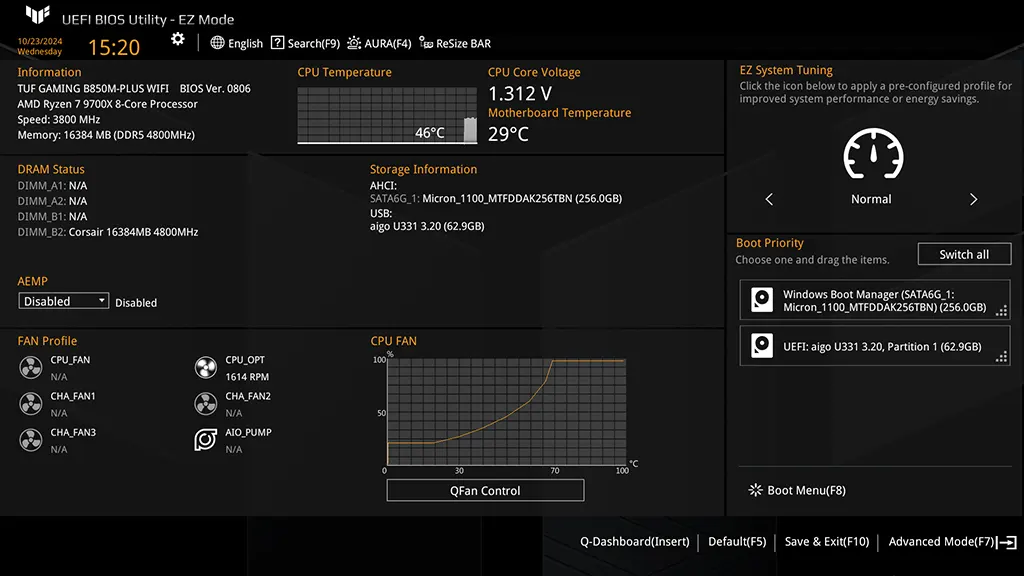

Quick and Simple Setup

EZ Mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality and one-click application of important settings — all to help you get your rig up and running in no time.

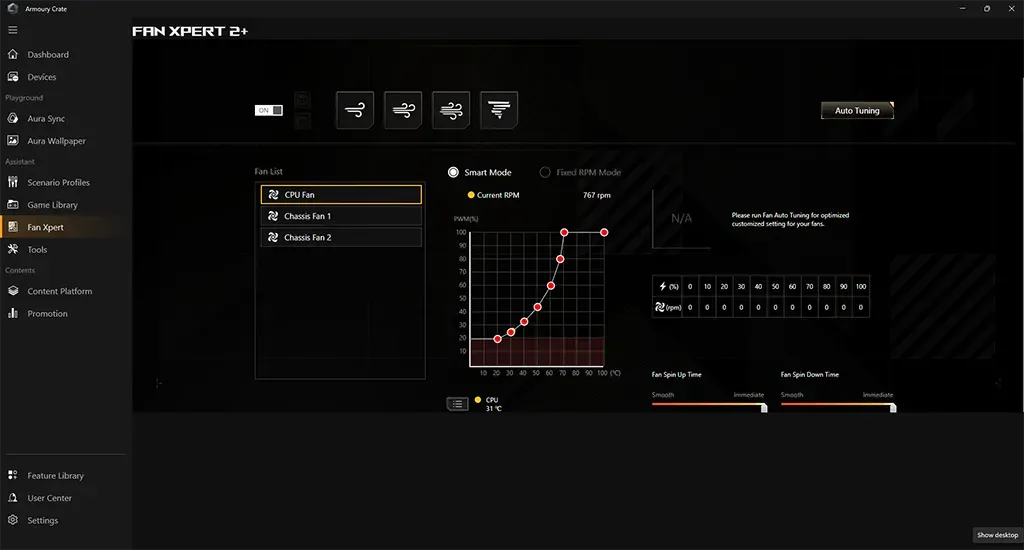

Intuitive Graphical Fan Control

Fine-tune individual fan settings simply by dragging a curve with the mouse.

Aura On/Off Mode (Stealth)

Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.

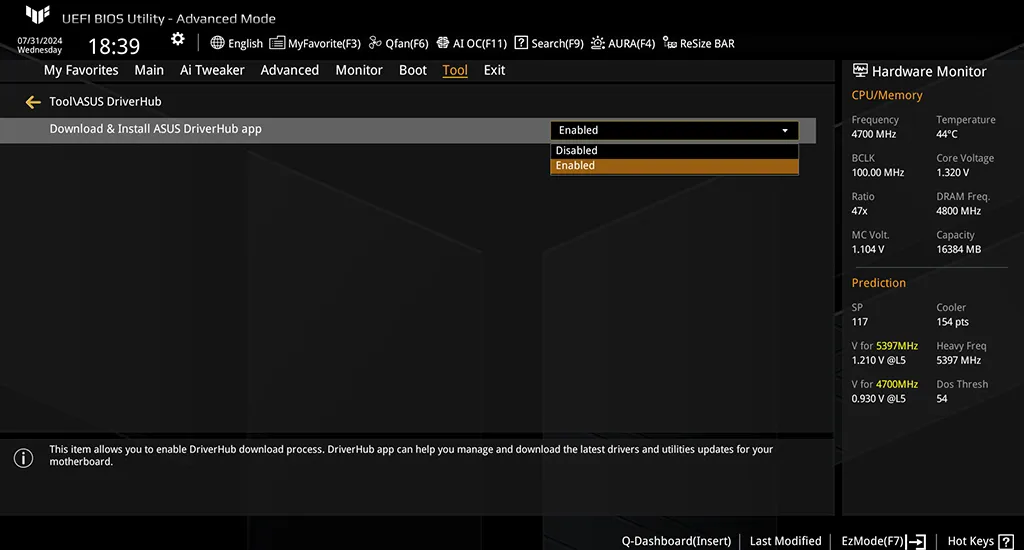

ASUS DriverHub

ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.

Learn more about ASUS DriverHub

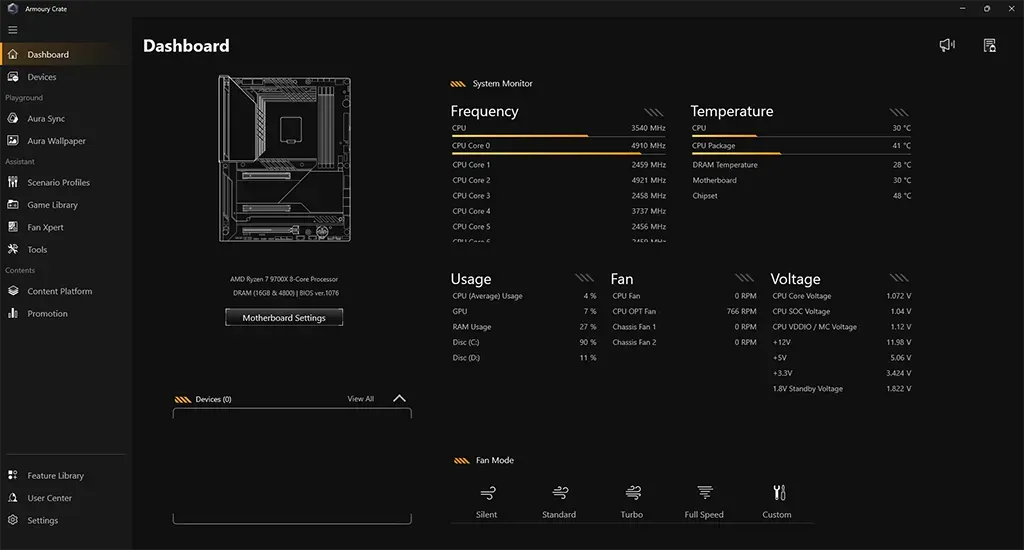

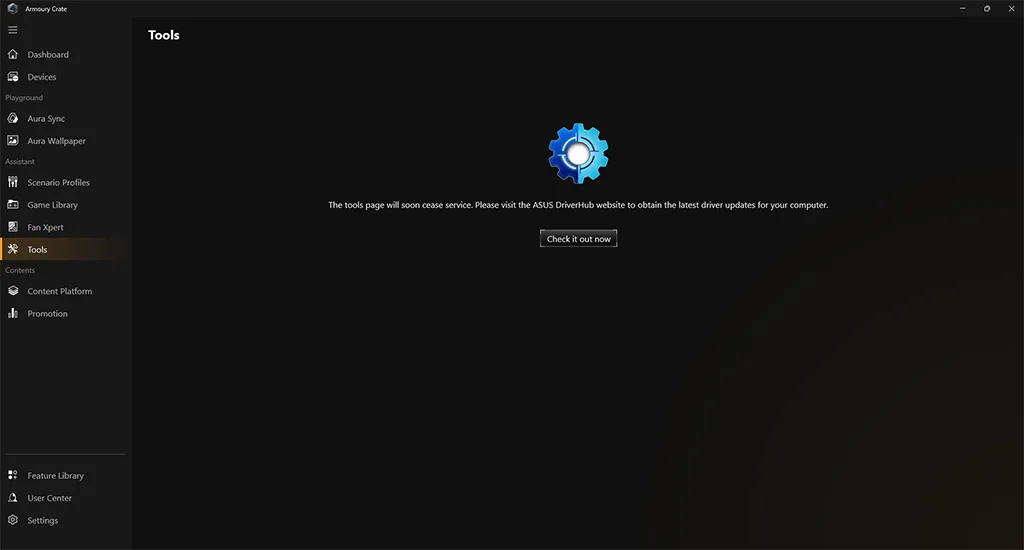

Armoury Crate

Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal, plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that the ASUS community always has access to interesting updates.

Download Armoury Crate here

Unleash DDR5 with AEMP

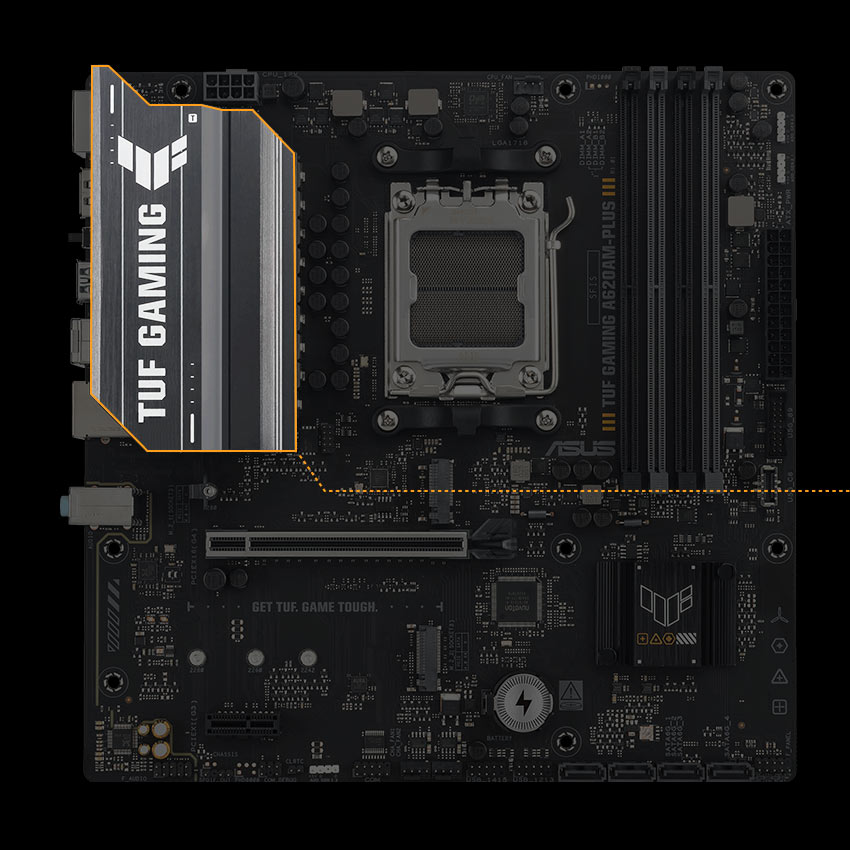

Enhanced VRM Heatsink

The extensive surface area of this heatsink covers the MOSFETs and chokes to improve thermal performance.

Smart Fan Protection

A dedicated integrated circuit protects each fan header from excess heat and electrical currents.

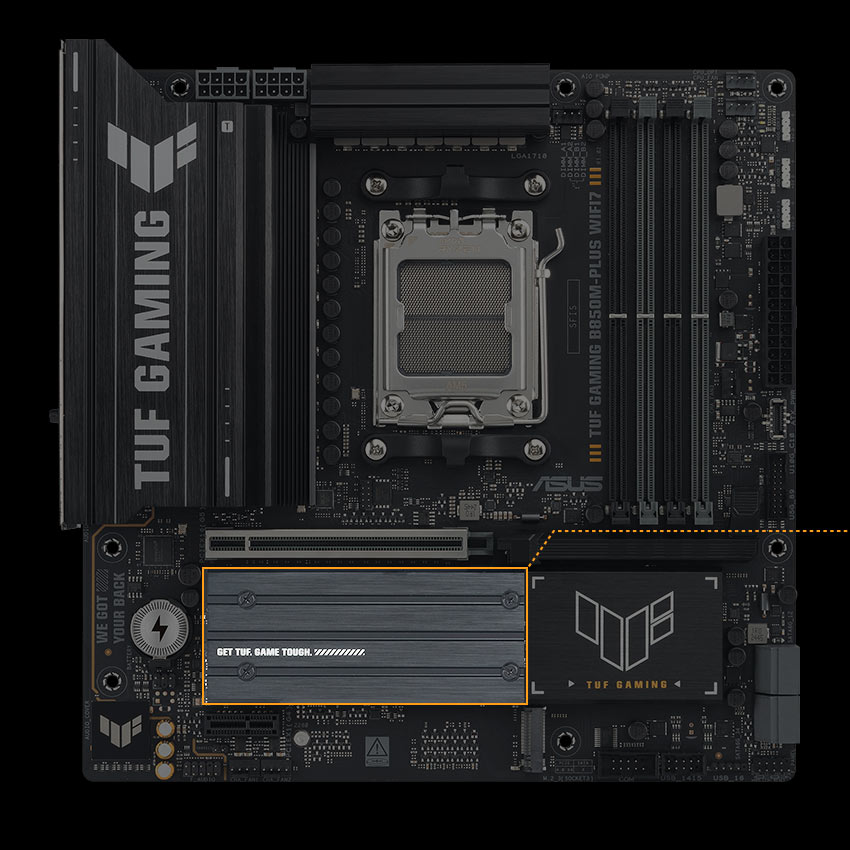

M.2 Heatsink

Two M.2 slots have dedicated heatsink to help keep M.2 SSDs at optimal operating temperatures and ensure consistent performance and reliability.

4-Pin PWM/DC Fan

All onboard fan headers support auto-detection of PWM or DC fans.

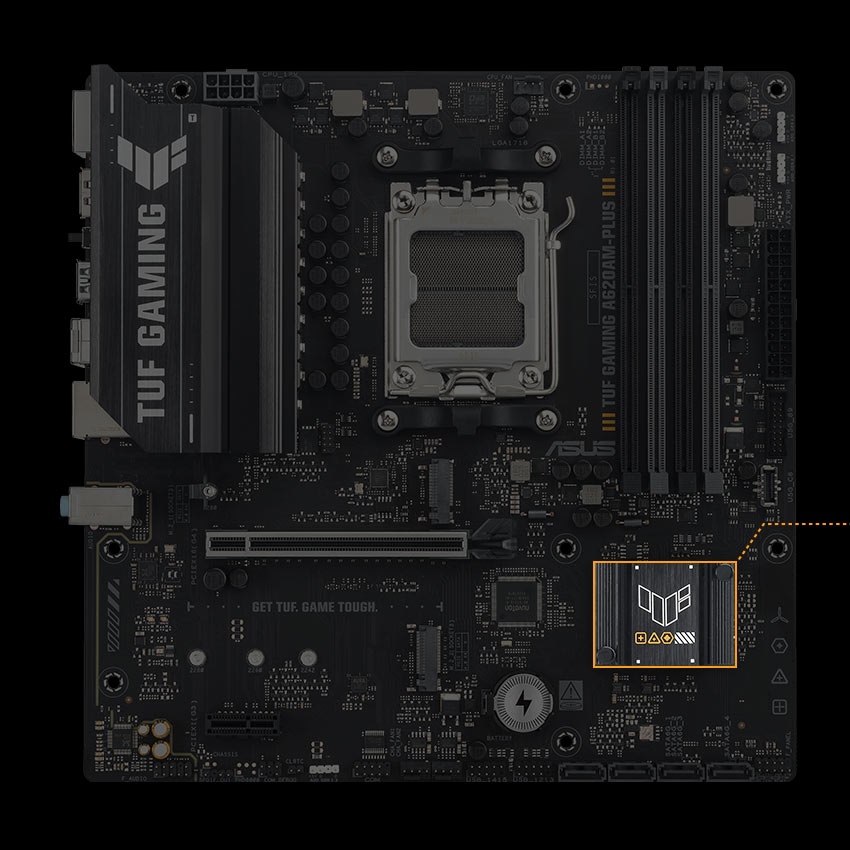

Superb Chipset Heatsink

A surface area for the chipset cooler maximizes system performance and heat dissipation.

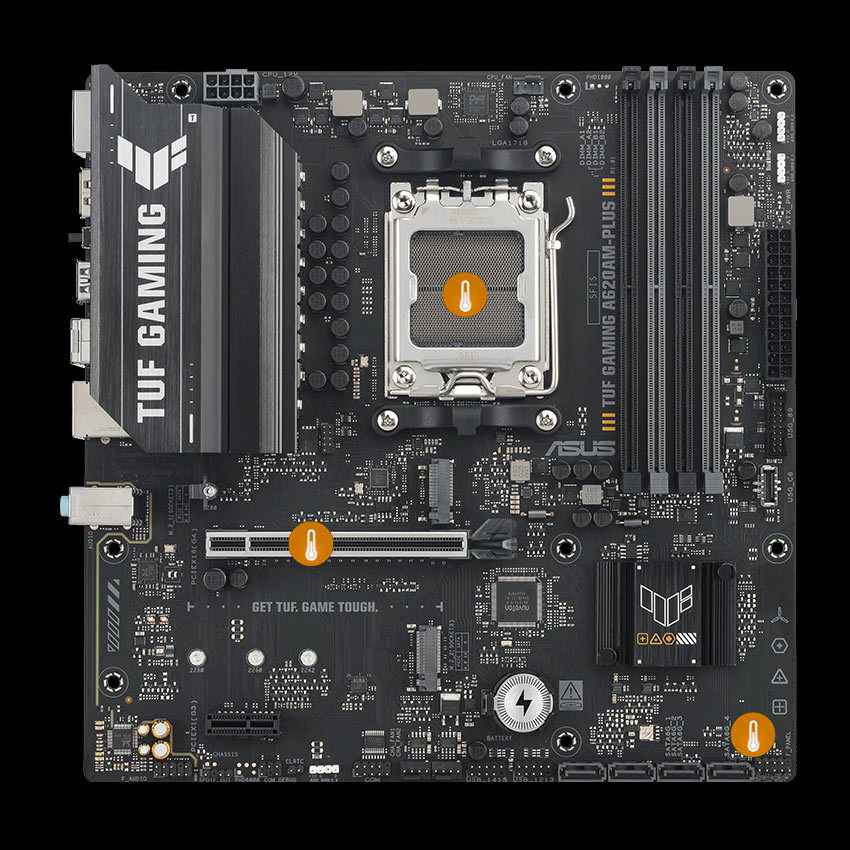

Multiple Temperature Sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

AIO Pump Header

An integrated AIO management system enables full control of PWM or DC water pumps, making it perfect for custom or all-in-one cooling setups.

Water Pump+ Header

A dedicated header supplies 3A for high-performance PWM or DC water pumps.

2.5Gb Ethernet

On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds by up to 2.5X. Using your existing LAN cable, you can take advantage of this networking upgrade to reduce lag, experience smoother high-resolution video streams, and enjoy faster file transfers.

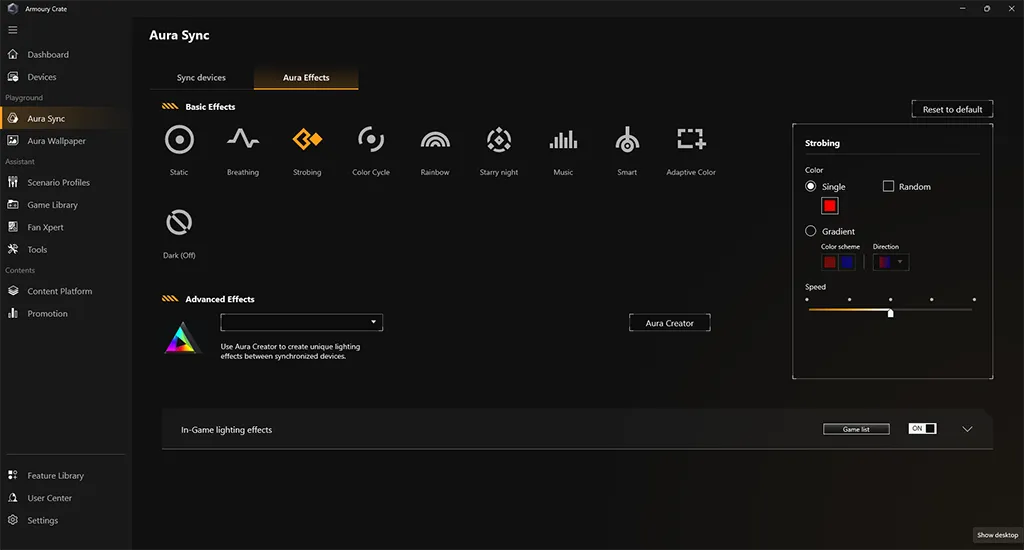

Outshine The Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for strips and devices connected to the onboard RGB headers- and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Learn more about ASUS Aura Sync.

static

breathing

color circle

reactive

rainbow

comet

partition

battery mode

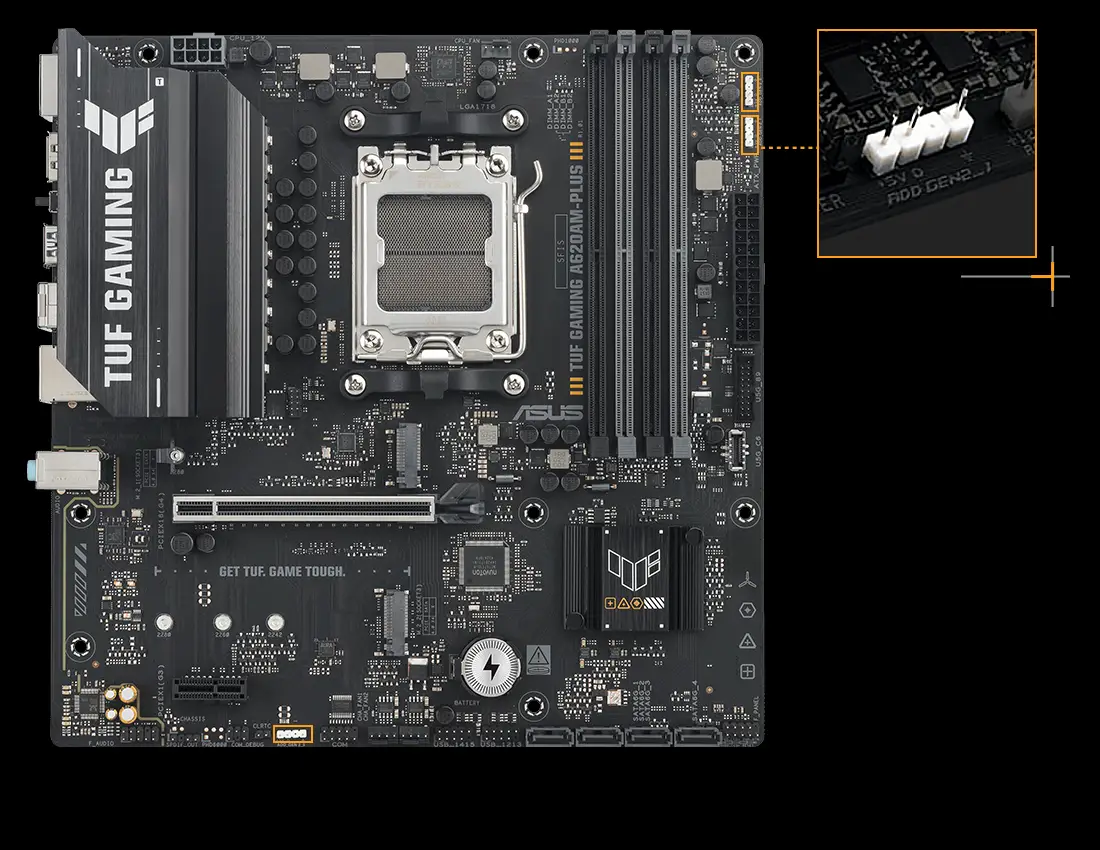

Addressable RGB Gen 2 Header

Three addressable RGB Gen 2 headers will support up to 500 LEDs on Gen 2 RGB devices, empowering Aura Sync to automatically tailor lighting effects across your whole system. The headers also offer full backward compatibility with existing Aura Sync gear.
