Name: TUF B365-PLUS GAMING
Brand: ASUS
SKU: 12158

TUF B365-PLUS GAMING

Intel B365 ATX gaming motherboard with 6+2 power stages design, Aura Sync, Aura ARGB header, DDR4 2666MHz support, 32Gbps M.2, and Intel Optane memory ready.

Enhanced Power Solution: 6+2 power stages, alloy-core choke, military-grade TUF components, and Digi+ VRM for maximum durability
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB header
GPU Temperature Sensing & Fan Xpert 2+: Ensures every fan achieves the best balance of cooling performance and acoustics
TUF Protection: SafeSlot Core+, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless-steel back I/O for long-term reliability
Military-grade TUF Components: TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs for maximum durability
TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case

Compare

Awards

n/a

The 2023 Readers’ Choice Award for Best Motherboard Brand goes to…ASUS. Not only has the brand been a favourite of our readers year-on-year, but this year’s results have been their highest in the last decade, surpassing their previous high of 62% in 2020’s Awards.

Can anyone beat ASUS in the PC DIY scene?

ASUS is highly regarded for quality components as well; its motherboards often the choice of enthusiasts, overclockers and gamers for their durability and performance.

With a commanding 62% share of the votes, ASUS is once again the winner of this Readers’ Choice category.

EHA Reader Awards 2024 These are the winners!

See all

Video reviews

Australian PC Awards 2021

【神回】Ryzenとは一体何者なのか？

PC configuration "Red bean cake" 44 million! Beautiful sauce! - Hang Nga level, championship people!

Admire the beauty of PC 70 million-nova i4070ti bl #shorts s

This set of PCs hides this string, surely his fans love

ASUS TUF GAMING Z790 BTF at Computex 2023

Media reviews

Award: Corporate - Manufacturer of the Year The winners - Ryzen 7 2700X, Geforce RTX 2070

Hands on the SSD TUF GAMING A1 - Reliability, water resistant

In the hands of the Gaming A1 - The best box Hard Drive SSD

In the hands of the SSD TUF GAMING A1 box - Durable, fast, and water resistance

Top 5 strong Mainboard Gaming Socket AM5 worth investing in 2023

Ranking of VGA manufacturers

See all

Arm Your Battlestation

TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.

D-Sub Port
HDMI Port
USB 3.1 Gen 1 Ports
Intel® Gb LAN
M.2 x2 PCIe &
SATA mode (2280)
PCI Express 3.0 Slot
ASUS SafeSlot core+ Support
CrossFireX™ Support
Gaming Audio
● Audio Shielding
● Dedicated audio PCB layers
● Premium Japanese audio
capacitors
DIGI+VRM & EPU
DDR4 2666/2400/2133
Aura sync
Addressable RGB header
Intel® LGA 1151 Socket
Front USB 3.1 Gen1 ports
6 x SATA 6GB/s ports
Intel® B365 Chipset
2 x RGB headers
M.2 x4 PCIe mode (22110)
Front USB 2.0 ports

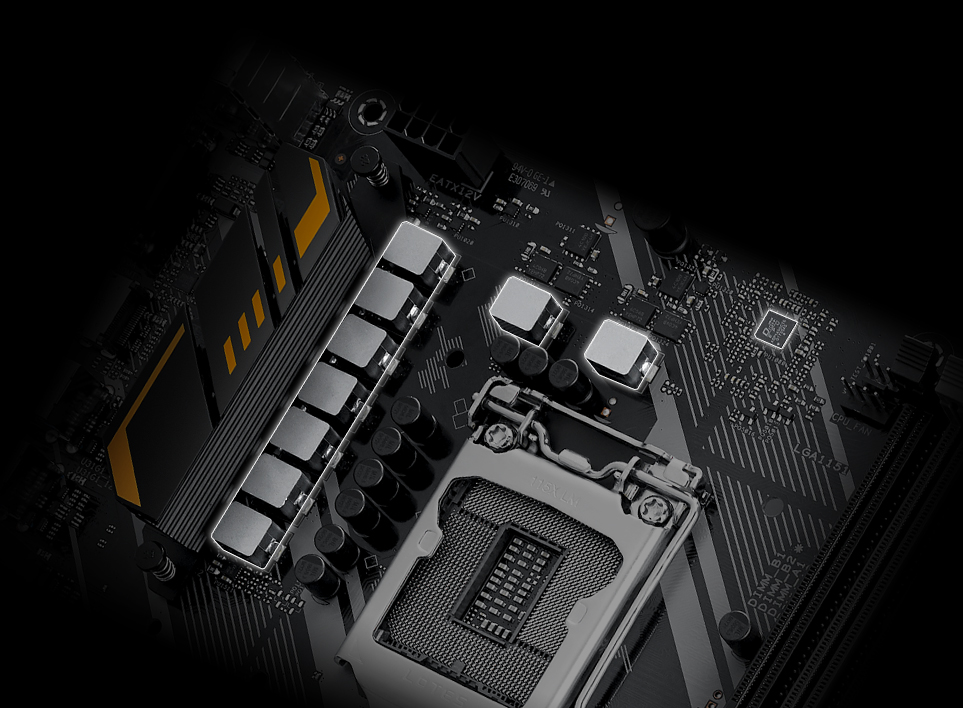

POWER UPGRADE

Power Design

TUF B365-PLUS GAMING upgrades comprehensive power design including 6+2 power stages to support latest Intel CPU with higher cores and high-permeability alloy-core chokes significantly to reduce power loss in and further improve efficiency and performance.

Digi + Power Control

The Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.

MicroFine Alloy Chokes

High-permeability alloy-core chokes significantly reduce power loss to further improve efficiency and performance.

Easy PC DIY Experience

TUF Gaming motherboards offer easy and safe DIY builds by leveraging great design, innovative engineering, and strong partnerships with major component manufacturers. The unrivalled combination of military-grade TUF Components, TUF Protection and the TUF Gaming Alliance means that you can rest assured that your gaming rig will go the distance.

TUF gaming alliance

TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. Learn More

TUF PROTECTION

SafeSlot Core+

SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

Strengthened solder points around the PCIe and DIMM pins.

Metal inserts keep graphics cards properly aligned during installation.

The metal side-panels feature hooks that firmly clasp the slot body.

ESD GUARDS

Electrostatic discharge protection

ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge — greatly surpassing the respective industry standards of +/- 6kV and +/- 4kKV

LAN port

ESD TVS diode protection on the LAN Circuit.

Keyboards and mouse connectors

Additional on-circuit ESD transient-voltage-suppression.

VGA Protection

Additional on-circuit ESD TVS diodes to protect D-Sub functionality.

USB connectors

TVS diode for surface-mount and dual-inline package.

DIGI+ VRM

Precision control for stable power

The Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.

DRAM OVERVOLTAGE PROTECTION

Short-circuit damage prevention

Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.

Stainless-steel back I/O

3X-better corrosion resistance

TUF's corrosion-resistant stainless-steel back I/O panels are bonded with chromium oxide ― so they can endure a 72-hour salt-spray test, compared to the industry standard of just 24 hours.

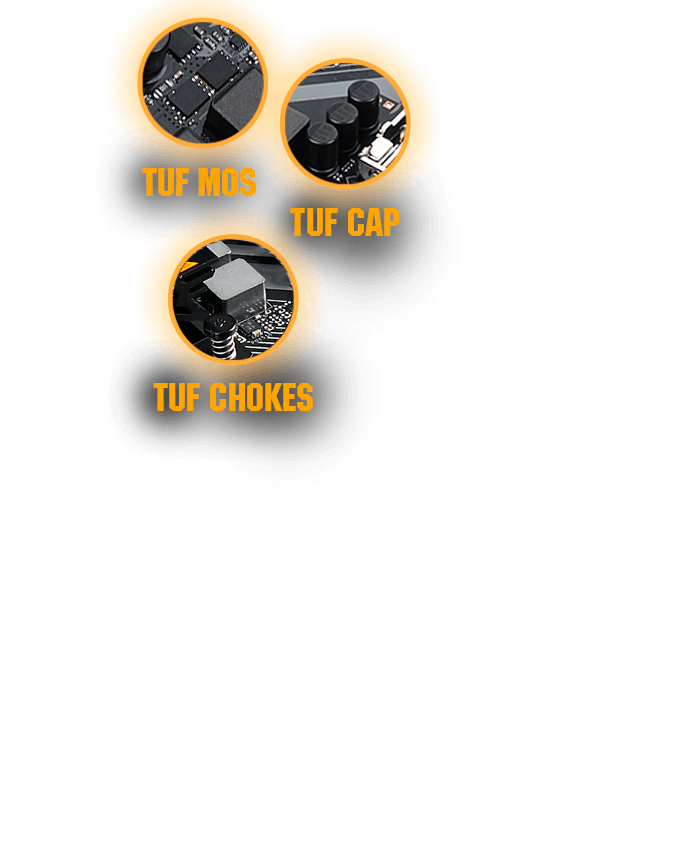

TUF COMPONENTS

TUF CHOKES

Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.

TUF CAPACITORS

+20% temperature tolerance and 2.5X-longer lifespan.

TUF MOSFETs

Certified military-grade MOSFETs with lower RDS(on)*.

*Lower RDS(on) results in better power efficiency and reduced heat generation.

PERFORMANCE LEVEL UP

FLEXIBLE COOLING CONTROLS

Fan Xpert 2+

System temperatures are key to a stable gaming rig. TUF Gaming motherboards include FAN Xpert 2+ software that's able to intelligently control system fans based upon the input of sensor. This ensures that your TUF Gaming system stays perfectly cooled, no matter how long you play.

FAN Xpert 2+

TUF B365M-PLUS GAMING features the most comprehensive fan controls ever, configurable via FAN Xpert 2+ and our award-winning UEFI BIOS.

Multiple temperature sources
4-pin PWM/DC fan

Each header can monitor and react to dedicated thermal sensors.
Enables full control of PWM or DC water pumps, perfect for both custom and self-contained cooling setups.
Every onboard header supports auto-detection of PWM or DC fans.
A dedicated integrated circuit protects each fan header from over-temperature and overcurrent.

Improved DDR4 Stability

ASUS OptiMem

ASUS OptiMem preserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the TUF Gaming motherboards to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive applications.

ASUS OptiMem advantage:

ASUS OptiMem benefits:

Improved memory stability and compatibility
Allows lower memory latencies at equivalent voltages
Improved memory frequency margin

Tested by using Synopsys HSPICE simulation software

A larger signal eye results in improved stability, more overclocking headroom, and lower operating voltages.

Shielded Audio, Superior Sound

Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!

Audio shielding

Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Dedicated channel layouts

Separate layers for left and right channels to preserve the quality of the sensitive audio signals.
Audio Enjoyment

Premium Japanese audio capacitors provide warm, natural, and immersive sound with exceptional clarity and fidelity.

OUTSHINE THE COMPETITION

Edge zone

A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Learn more about ASUS Aura Sync.

Static
Breathing
Strobing
Rainbow
Color cycle
Comet
Flash & dash
Wave
Glowing Yo Yo
Starry night
Music effect
Smart

GAMING NETWORKING

TUF LANGuard

Best surge protection

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.

ULTRAFAST TRANSFER SPEED

Speed Up with Onboard M.2

With x4 PCI Express® 3.0 bandwidth, M.2 supports up to 32Gbps data-transfer speeds. It's the perfect choice for an operating system or application drive, making your PC and apps work as fast as possible.

Intel Optane Memory Ready

Intel^® Optane™ is a revolutionary non-volatile memory technology supported by TUF Gaming motherboards. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.

Intel CPU and Chipset features

INTEL CPU AND CHIPSET FEATURES

The Intel^® B365 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the B365 chipset provides a maximum of six USB 3.1 Gen 1 ports, six SATA 6Gbps ports, and 32Gbps M.2 and PCIe 3.0 lane-speed support, for faster data retrieval. Intel B365 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.

Ready for Socket 1151 for 9^th / 8^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® processors

This motherboard supports Socket 1151 for 9^th Gen and 8^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
