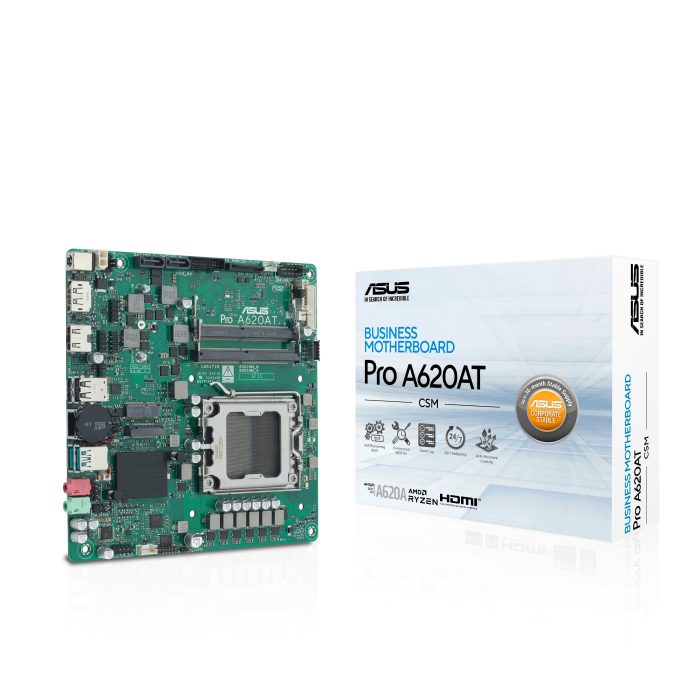

Pro A620AT-CSM
Thin mini-ITX A620A business motherboard with enhanced security, reliability, manageability, and efficiency.
AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Remote IT management: DASH hardware ready for capable of DASH software
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
Ultrafast Connectivity: PCIe 4.0 M.2 slot, DDR5 SO-DIMM slots, Front USB 10Gbps Type-C® and rear USB 10Gbps Type-A
Remote IT management: DASH hardware ready for capable of DASH software
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
Ultrafast Connectivity: PCIe 4.0 M.2 slot, DDR5 SO-DIMM slots, Front USB 10Gbps Type-C® and rear USB 10Gbps Type-A
Compare
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
-

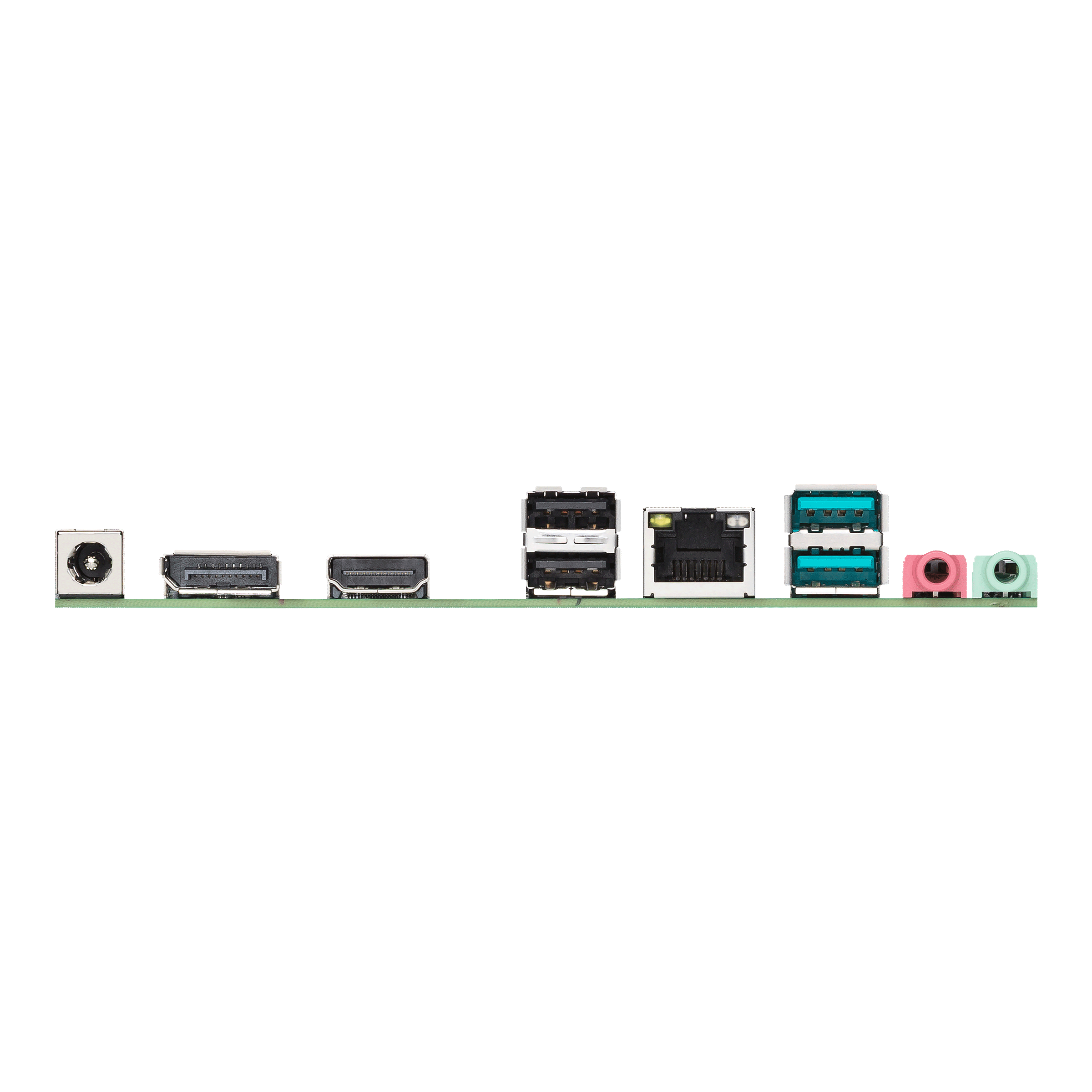

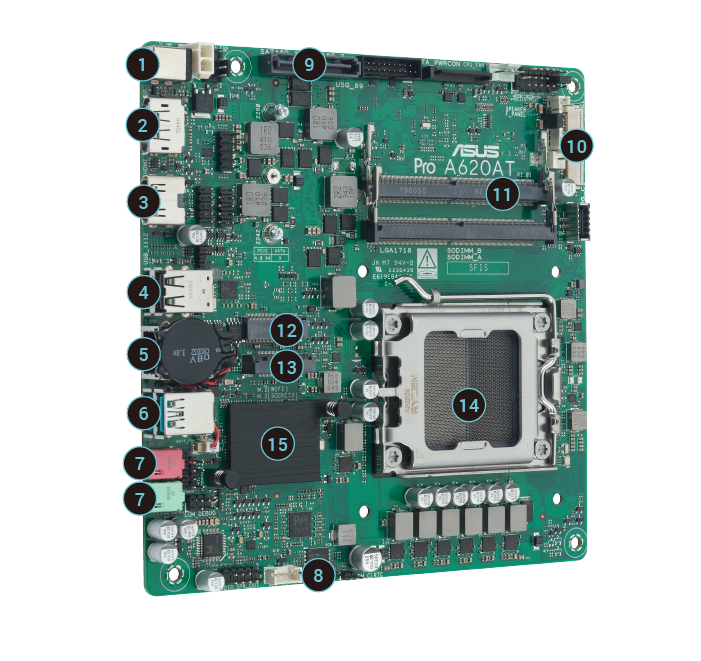

19v DC in
-
DisplayPort
-
HDMI™ port
-
2 x USB 2.0 ports
-
Realtek DASH Ethernet
-
2 x USB 10Gbps
(2 x Type-A) -
Audio
-
TPM header
-
2 x SATA 6Gb/s ports
-
LVDS connector
-
2 x SO-DIMM slots, Max. 128GB, DDR5
ECC and Non-ECC, Un-buffered Memory -
M.2 slot(Key E), type 2230
-
M.2 slot(Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode) -
AM5 Socket for AMD Ryzen™ Desktop Processors
-
Intel® A620A Chipset
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
Learn more about ASUS Corporate Stable Model
Learn more about ASUS Corporate Stable Model
ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express – a US$60
Learn more about ASUS Control Center Express
Learn more about ASUS Control Center Express
-
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
-
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
-
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
* ASUS Control Center Express is only available for CSM motherboards. Please consult your local sales representative for more information
Internationally Certified Business Motherboard
ASUS Business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS Business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.
-
ASUS Shield
Enhances system security from bottom to top
-
ASUS Reliant
Ensures consistent performance with the finest components and rigorous reliability testing
-
Management Suite
Makes customization and management more efficient
-
ASUS Serviceability
Facilitate the assembly process and enable efficient troubleshooting
ASUS Shield
Enhances system security from bottom to top
-
ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.LEARN MORE -
Trusted Platform Module(TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity. -
Certified NIST SP 800-147
ASUS Business motherboard is certified by the national computer security standards. -
ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.
ASUS Self-recovering BIOS
With ASUS Self-recovering BIOS
The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.
-
Ensures safe BIOS updates
-
Reduces maintenance frequency and costs
-
Requires no extra software
-
Provides automatic update failure detection and recovery
Standard process for BIOS update crash recovery
The user must go through the following steps to reinstall the BIOS update:
ASUS Reliant
Ensures consistent performance with the finest components and rigorous reliability testing
Anti-moisture Coating
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.
Anti-sulfur Resistors
Consider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

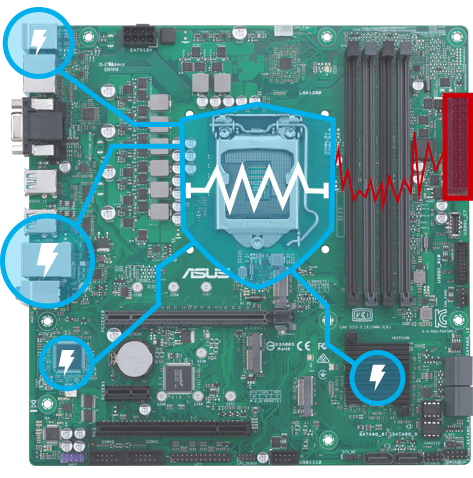

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.

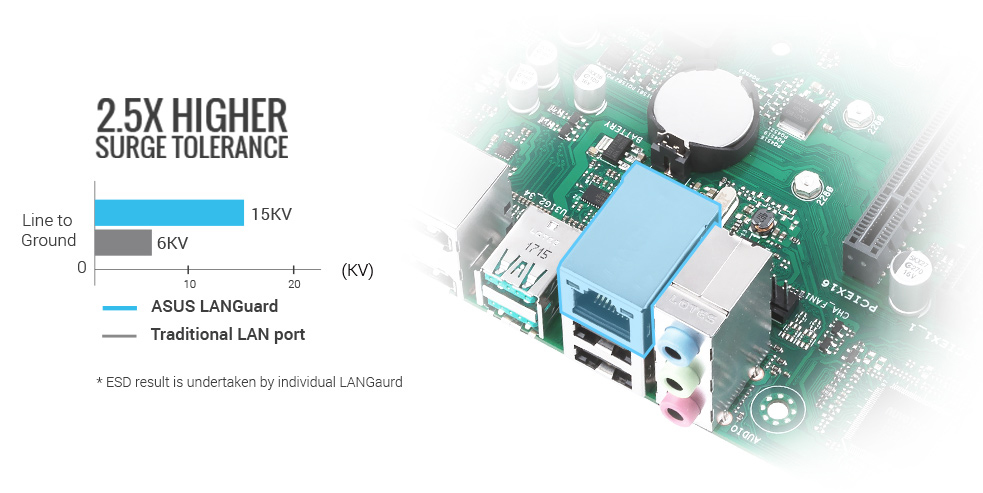

LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

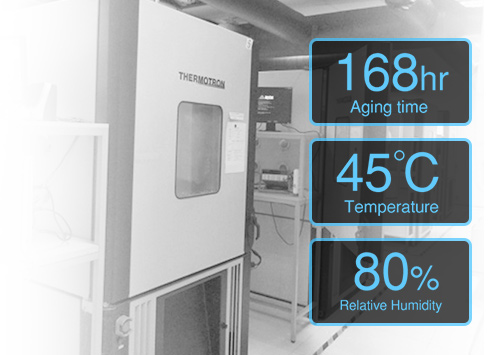

24/7 Reliability Test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.
ASUS Management Suite
Make IT work more efficiency!
Event Log
A built-in event log enables easier troubleshooting by capturing useful system information
-
BIOS updates
Update status, latest version and update time
-
AC power loss
Abnormal power loss events
-
RTC reset
Time of real-time-clock (RTC) reset
-
Chassis intrusion
Record of when chassis is opened
-
Hardware changes
Modifications to CPU, memory or HDDs
-
Hardware status
USB over current, CPU over temperature, and CPU over voltage events
ASUS Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!
-
BIOS Value Edit Tool
Customize the BIOS options
-
BIOS Boot Logo Tool
Brand your builds with a customized boot logo
-
OEM Activation (OA) Tools
Add or remove the OEM Activation key
-
Desktop Management Interface (DMI)
Easily add customer information, such as company name, to the BIOS
-
Intel® Management Engine (Intel® ME) Driver
Update the Management Engine without flashing the whole BIOS
* Please contact with local FAE for commercial BIOS kit.
DASH support Ready
DASH(Desktop and mobile Architecture for System Hardware) is a suite of specifications developed by the DMTF that delivers open standards-based Web services management for desktop and mobile client systems. DASH is a comprehensive framework that provides the next generation of standards for secure out-of-band and remote management of desktop and mobile systems in multi-vendor, distributed enterprise environments. DASH enables robust, secure out-of-band management.
* Pro A620AT-CSM is hardware ready for capable of DASH software. DASH software is not attached with product.
ASUS Serviceability
Facilitate the assembly process and enable efficient troubleshooting
Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
No DRAM Detected
Fast blinking
4 Hz (0.25s)
No VGA Detected
Slow blinking
1/2 Hz (2s)
No Boot Device Detected
Very slow blinking
1/8 Hz (8s)
Installation Completed
Solid light

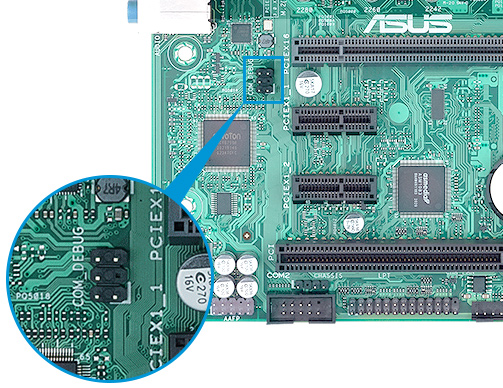

ASUS COM Debug Header
This 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialization and recovery processes when connecting to a debug card*.
*Third-party debug card sold separately.
Box Headers

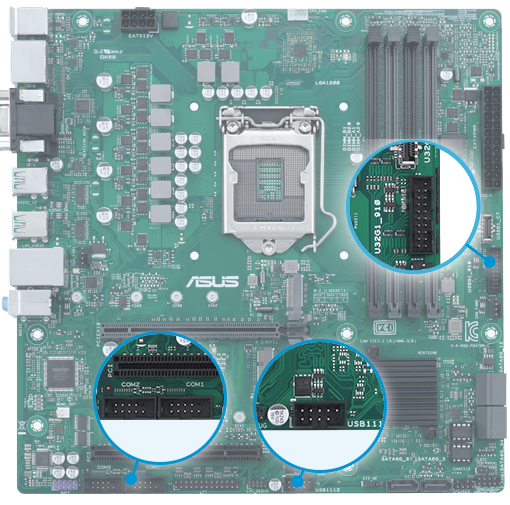

All USB headers are box style, enabling fast connector installation and preventing pin damage.

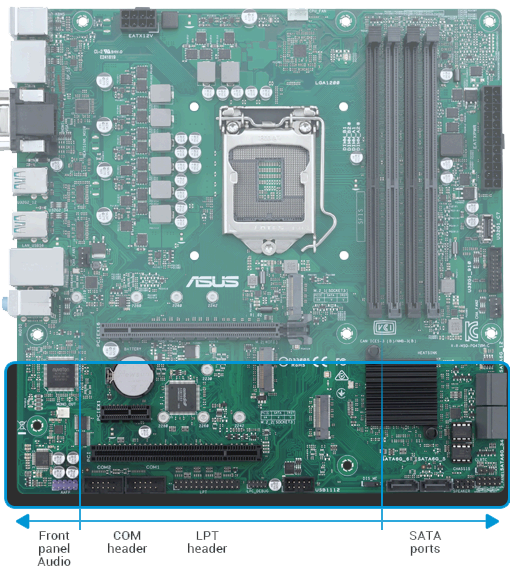

Fixed-position Connectors
Connector positions on ASUS Business motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.
