[Unmanaged Switch] What are the four intelligent features of the ASUS QG-U1050 and QG-U1080 switches?
The ASUS QG-U1050 and QG-U1080 offer four intelligent modes, unlike traditional unmanaged switches. These modes can be activated using the piano-style toggle switch located on the front panel. Each mode adjusts how the switch behaves to optimize for different networking needs. Here are the detailed explanations of each mode.
Note: A restart of your Ethernet switch is required after changing the mode for the new settings to take effect.

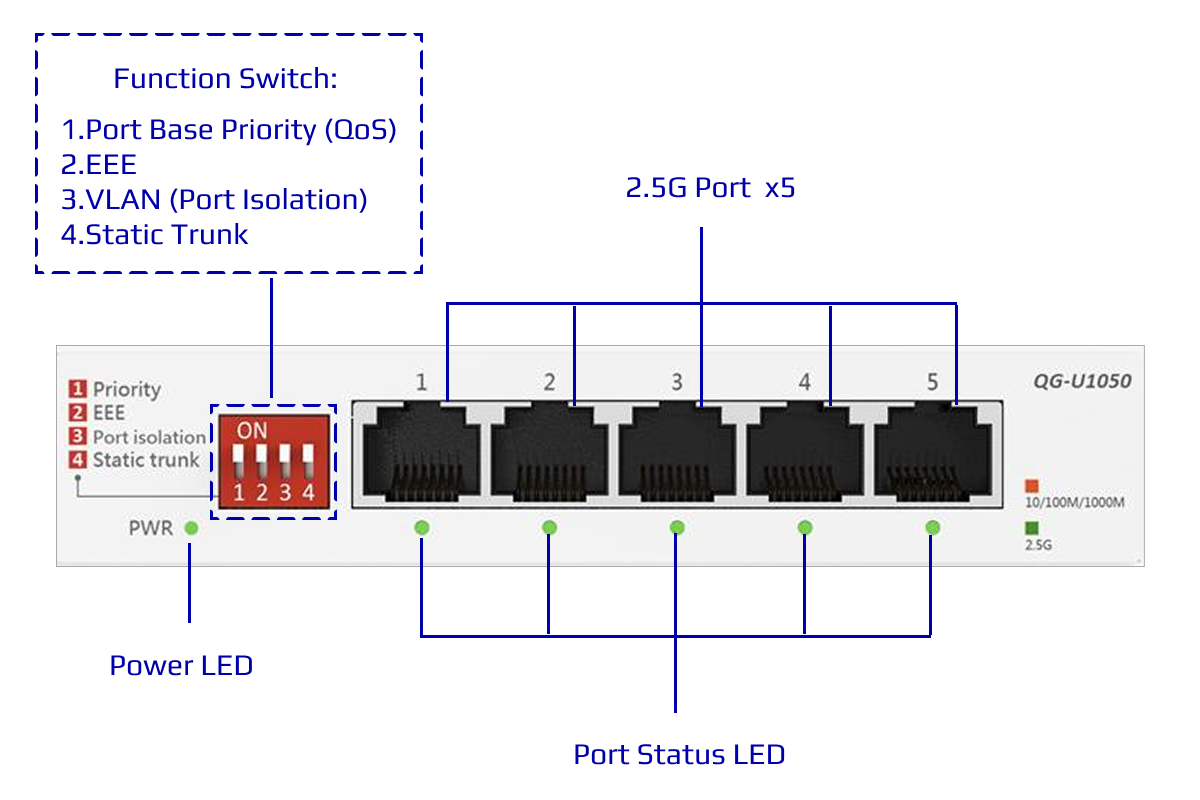

QG-U1050 | |
| Mode | Explanation |
| Priority | Ports will be prioritized in the following order: Port 4 = Port 5 > Port 1 > Port 2 > Port 3. |
| Energy Efficient Ethernet (EEE) | EEE helps conserve energy when no data is being transmitted. |
| Port Isolation | Port 1 to 4 are isolated from each other and can only communicate with Port 5 (the uplink port). |
| Static Trunk (Aggregation) | Port 4 and 5 can be configured/aggregated to form a static trunk, offering enhanced bandwidth (up to 5G) and redundancy for improved network performance. |

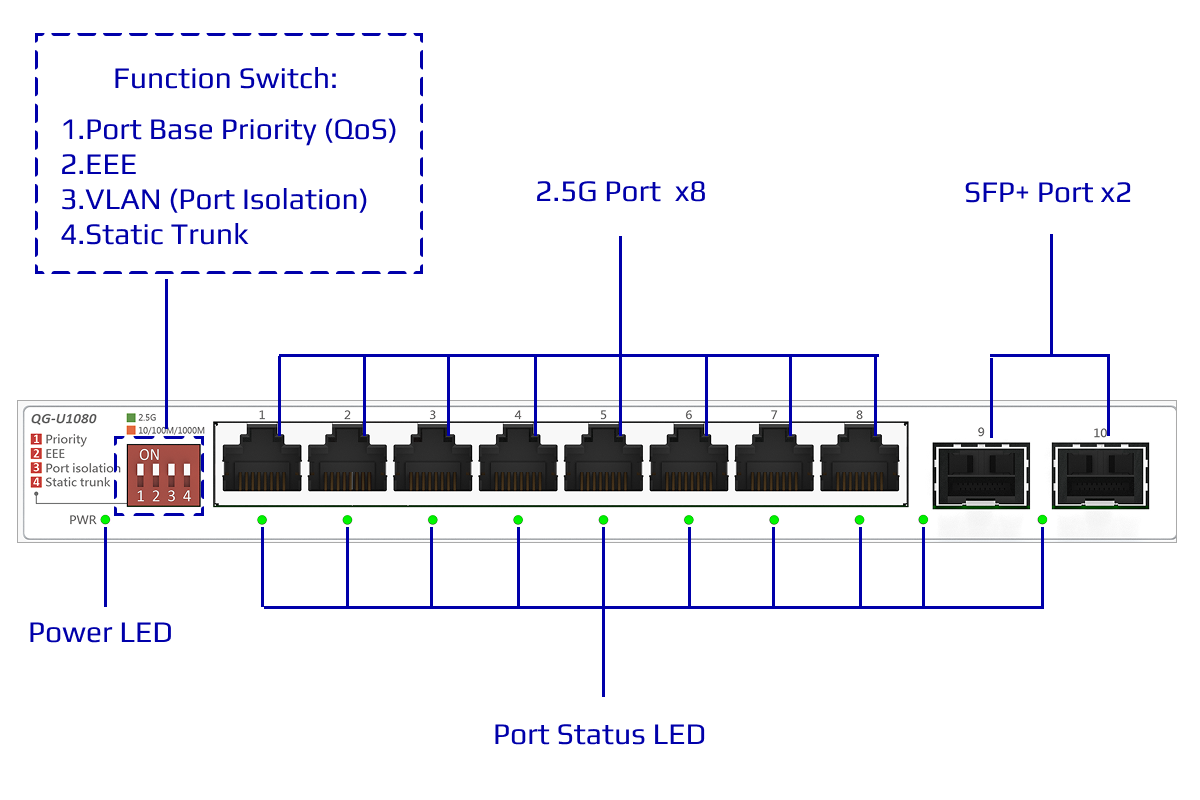

QG-U1080 | |
| Mode | Explanation |
| Priority | Ports will be prioritized in the following order: Port 9 = Port 10 > Port 1 > Port 2 > Port 3 > Port 4 > Port 5 > Port 6 > Port 7 > Port 8. |
| Energy Efficient Ethernet (EEE) | EEE helps conserve energy when no data is being transmitted. |
| Port Isolation | Port 1 to 8 are isolated from each other and can only communicate with Port 9 and 10 (the uplink ports). |
| Static Trunk (Aggregation) | Port 9 and 10 can be configured/aggregated to form a static trunk, offering enhanced bandwidth (up to 20G) and redundancy for improved network performance. |
How to get the (Utility / Firmware)?
You can download the latest drivers, software, firmware and user manuals in the ASUS Download Center.
If you need more information about the ASUS Download Center, please refer to this link.
